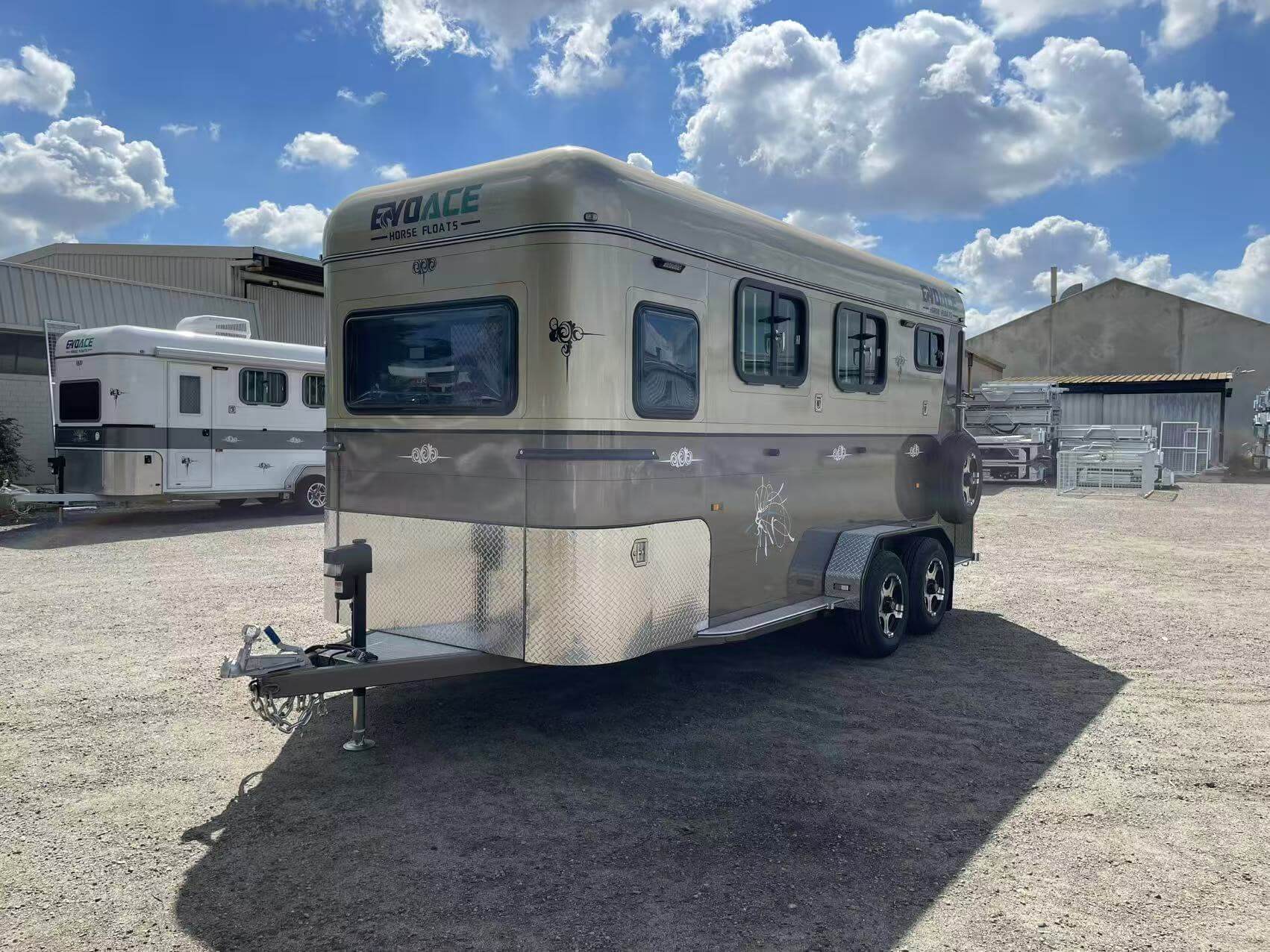

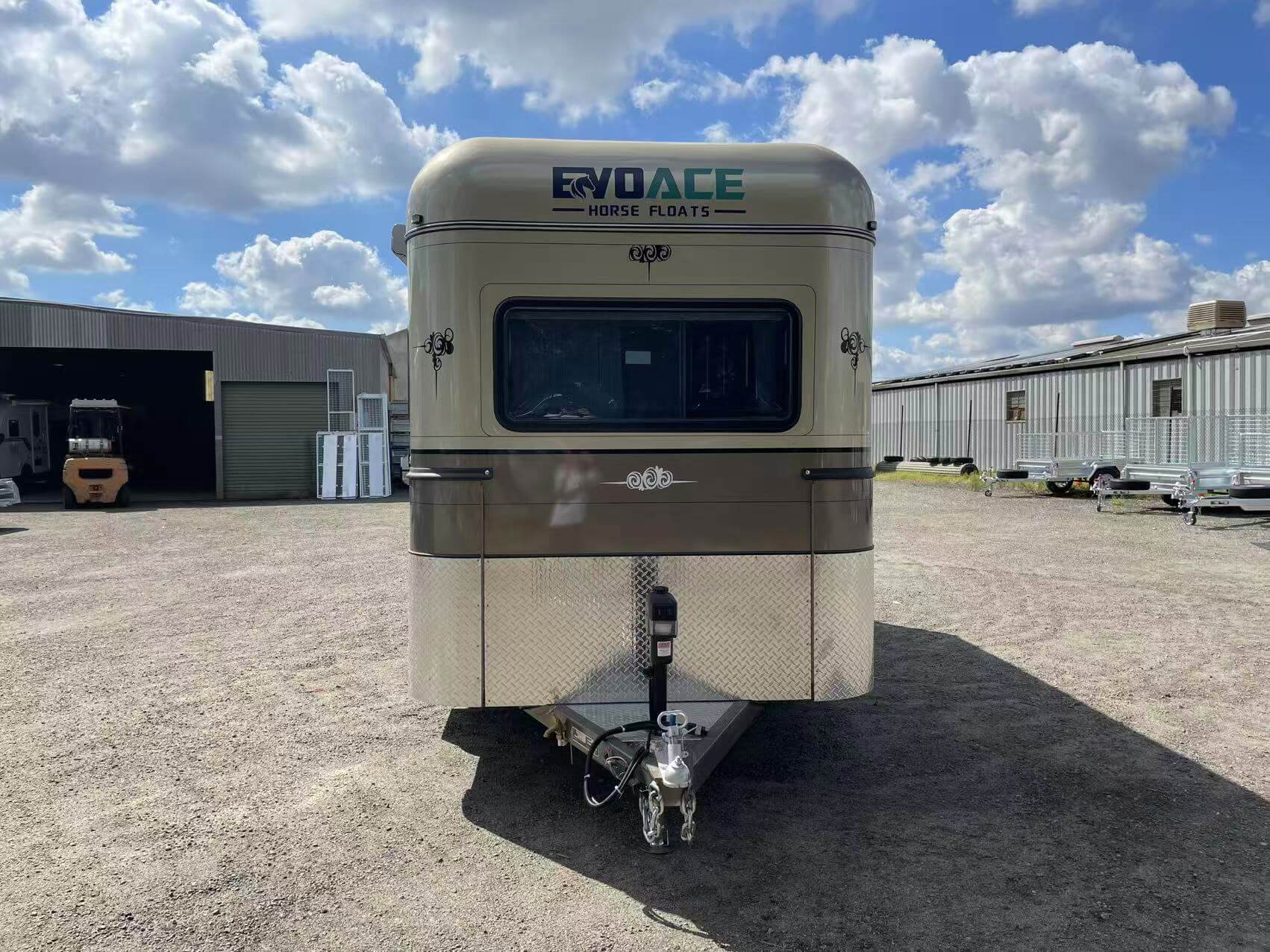

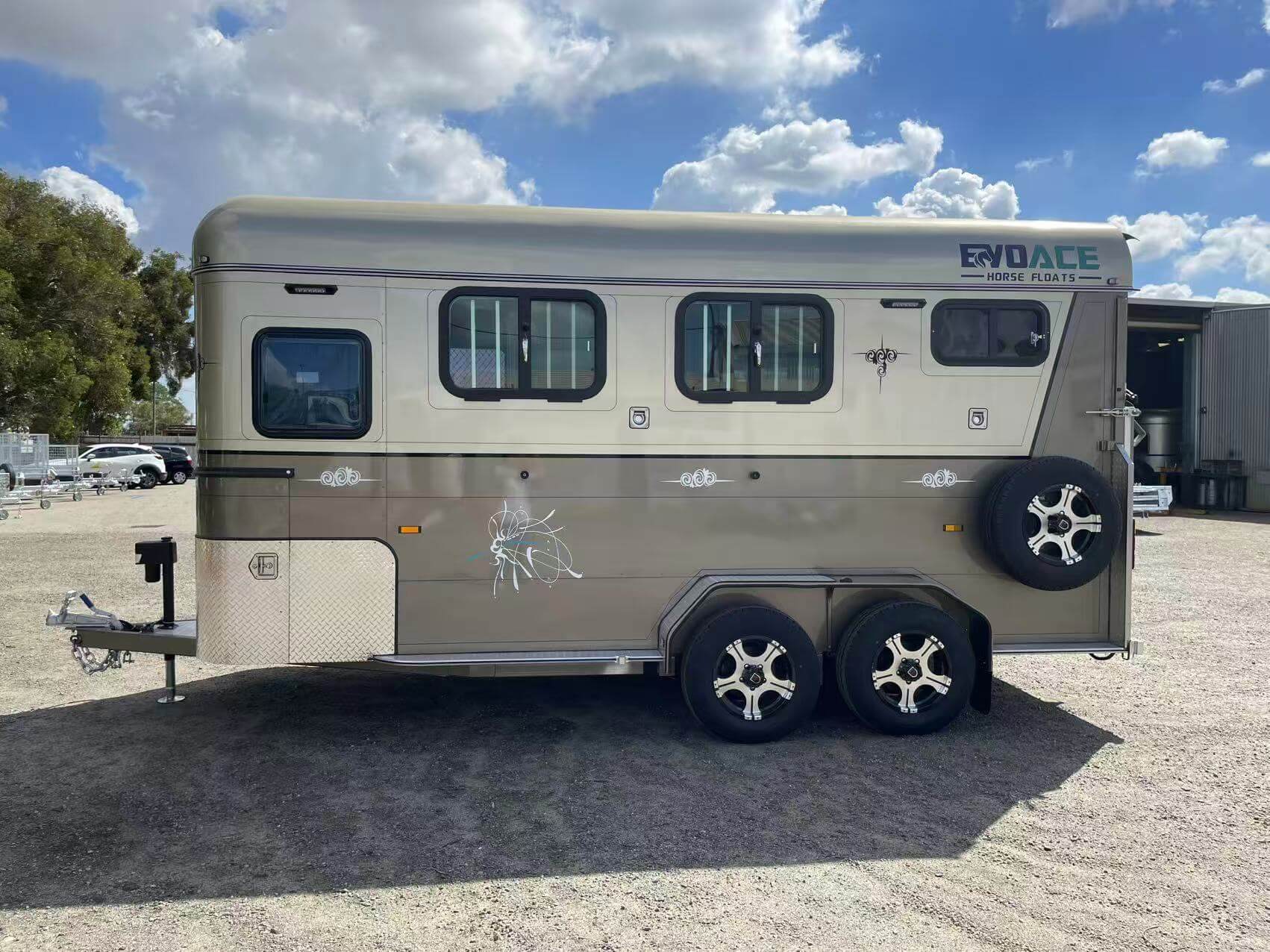

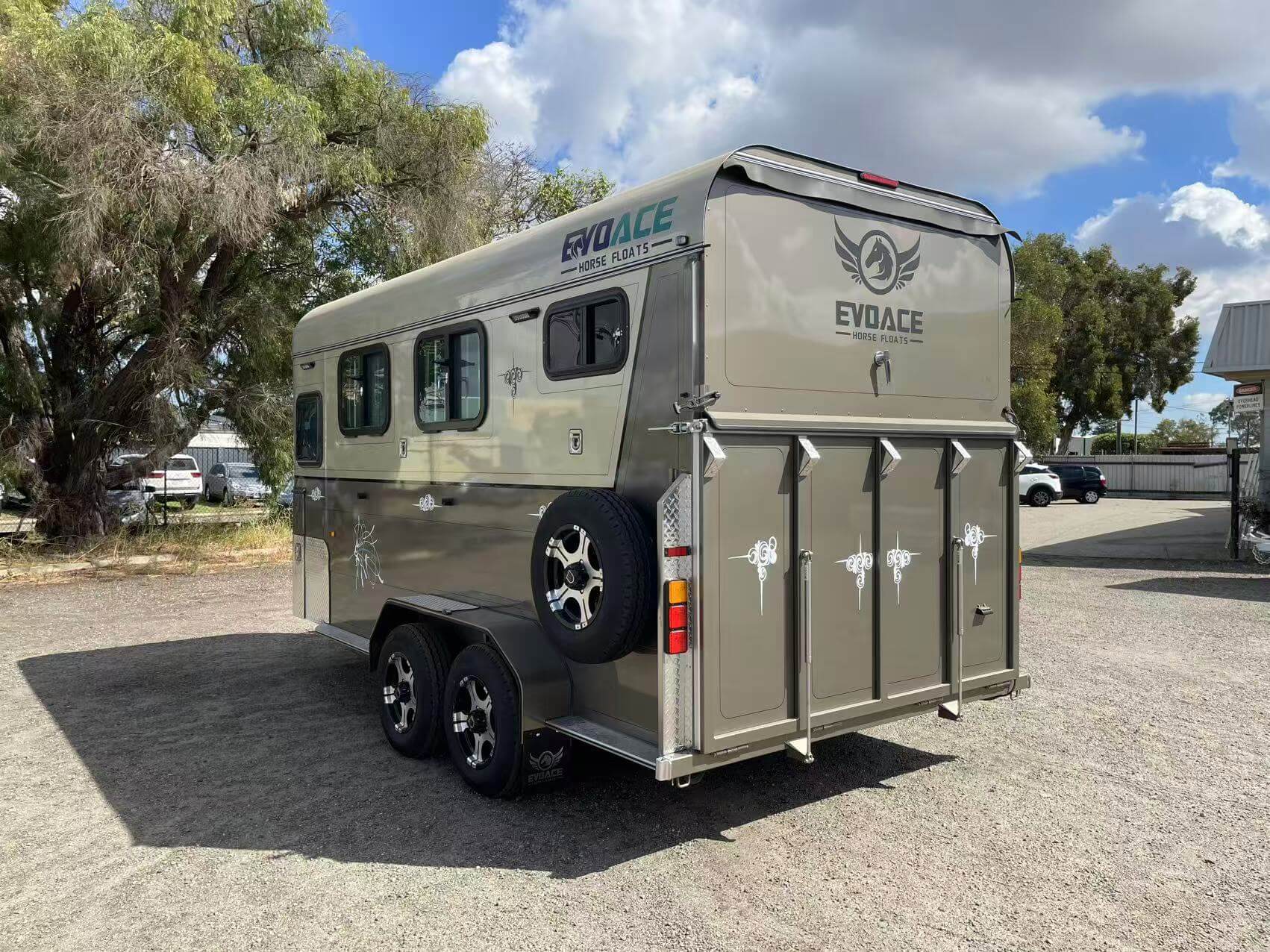

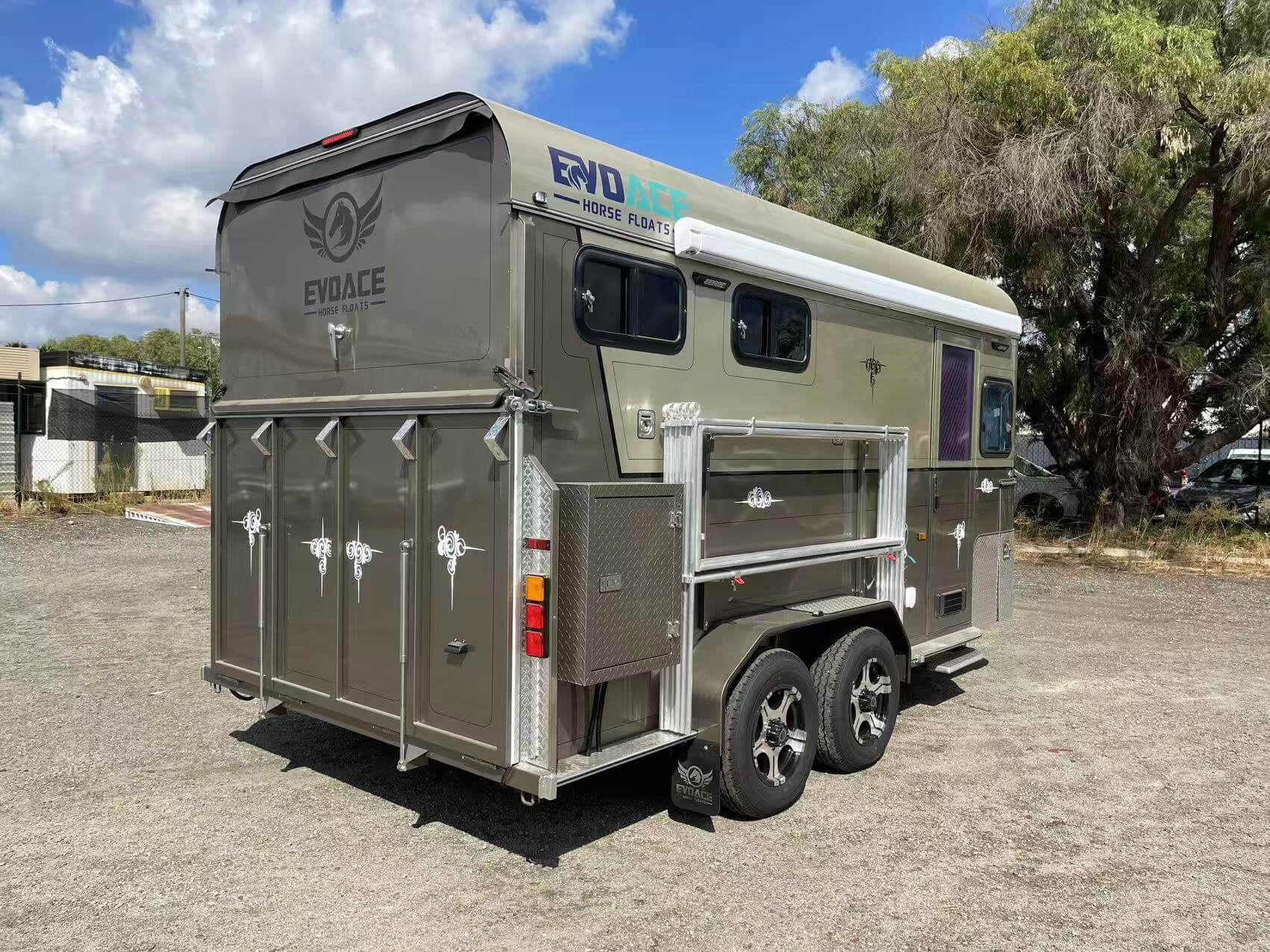

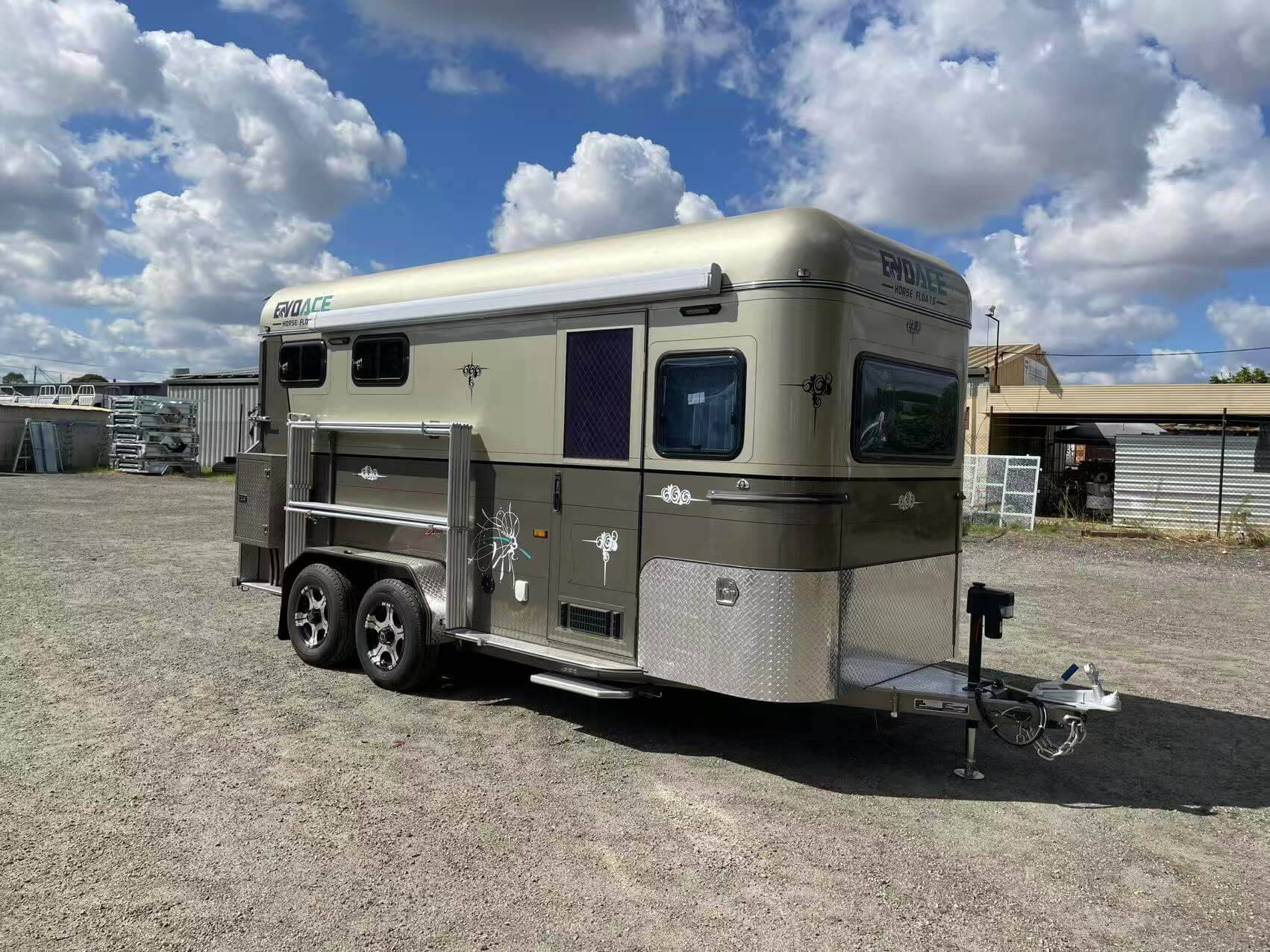

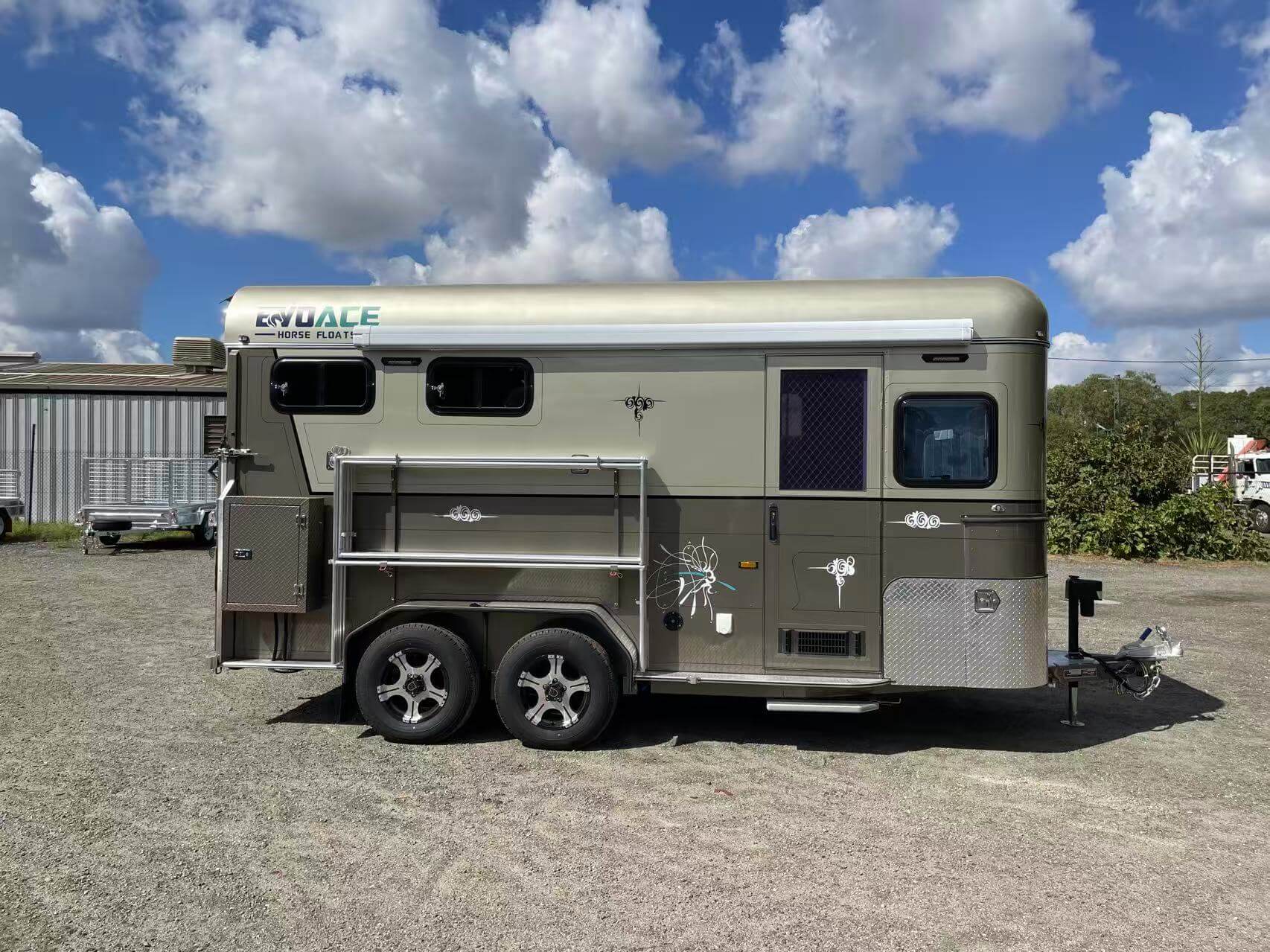

V210 2HAL Compact Camper WB

Dimension:
Overall dimensions: 5670*2500*2675mm
Body dimensions: 4820*1980*2280mm
Inner dimensions: 4770*1930*2230mm
Horse bay: 2600*840mm

Weight:
Approx. TARE 2350kg
ATM: 3500kg


Key features:

Lifting table/ bed

PPG Metallic paint

TIMKEN BEARING

Front bunk: 900x1900mm

Horse bay size: 840x2600mm

FRPs insulated living area

Fully adjustable guide rail and foldable horse divider

Cowboy shower with hot water

Aluminium flooring

6 x double panels aluminium yard

110AH DC AGM battery and Victron Energy Blue smart charger

240v Inlet and 2 sockets with safety switches

59L 12v/240v Fridge

2 x 12V Fan

Caravan door

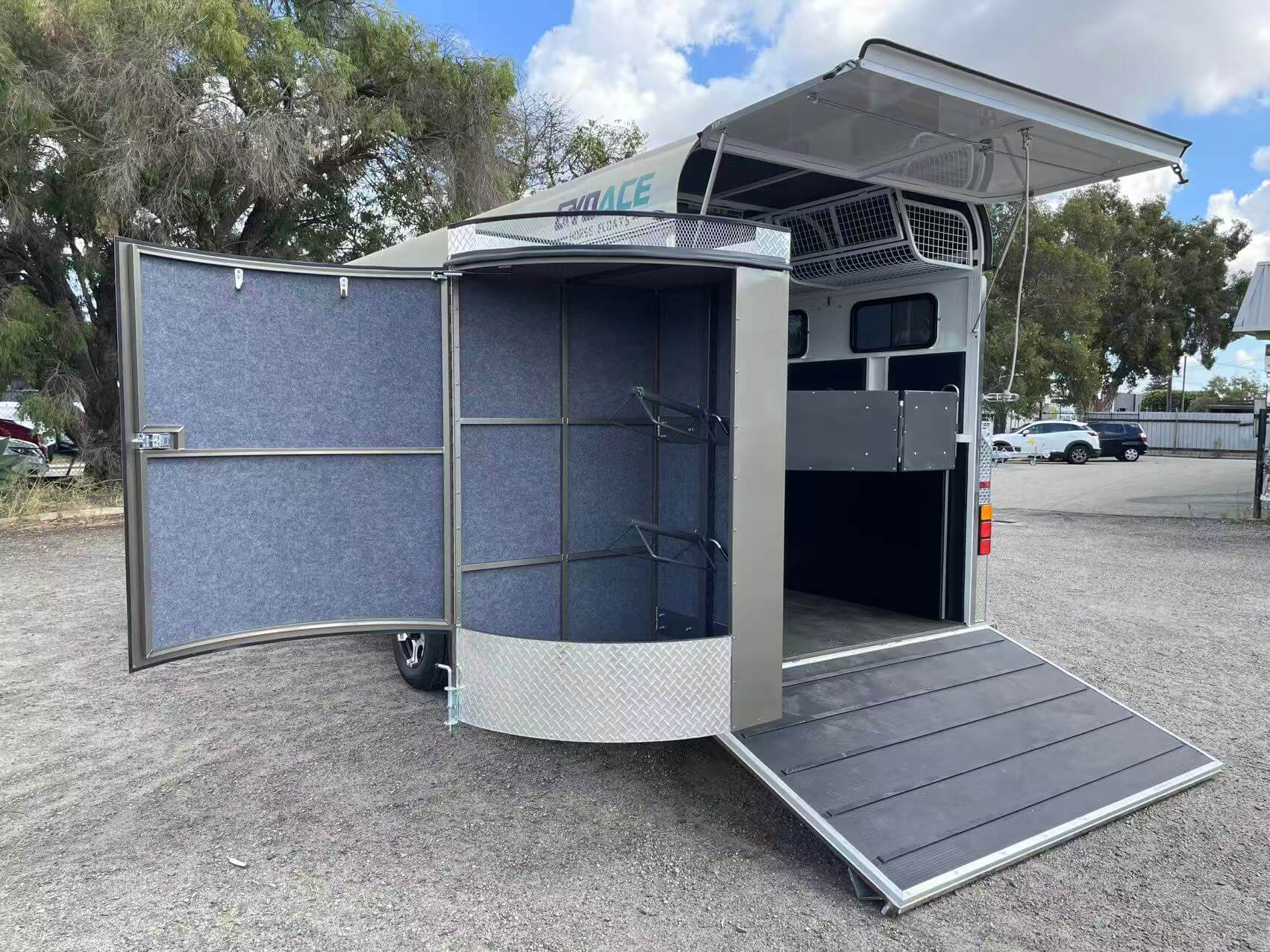

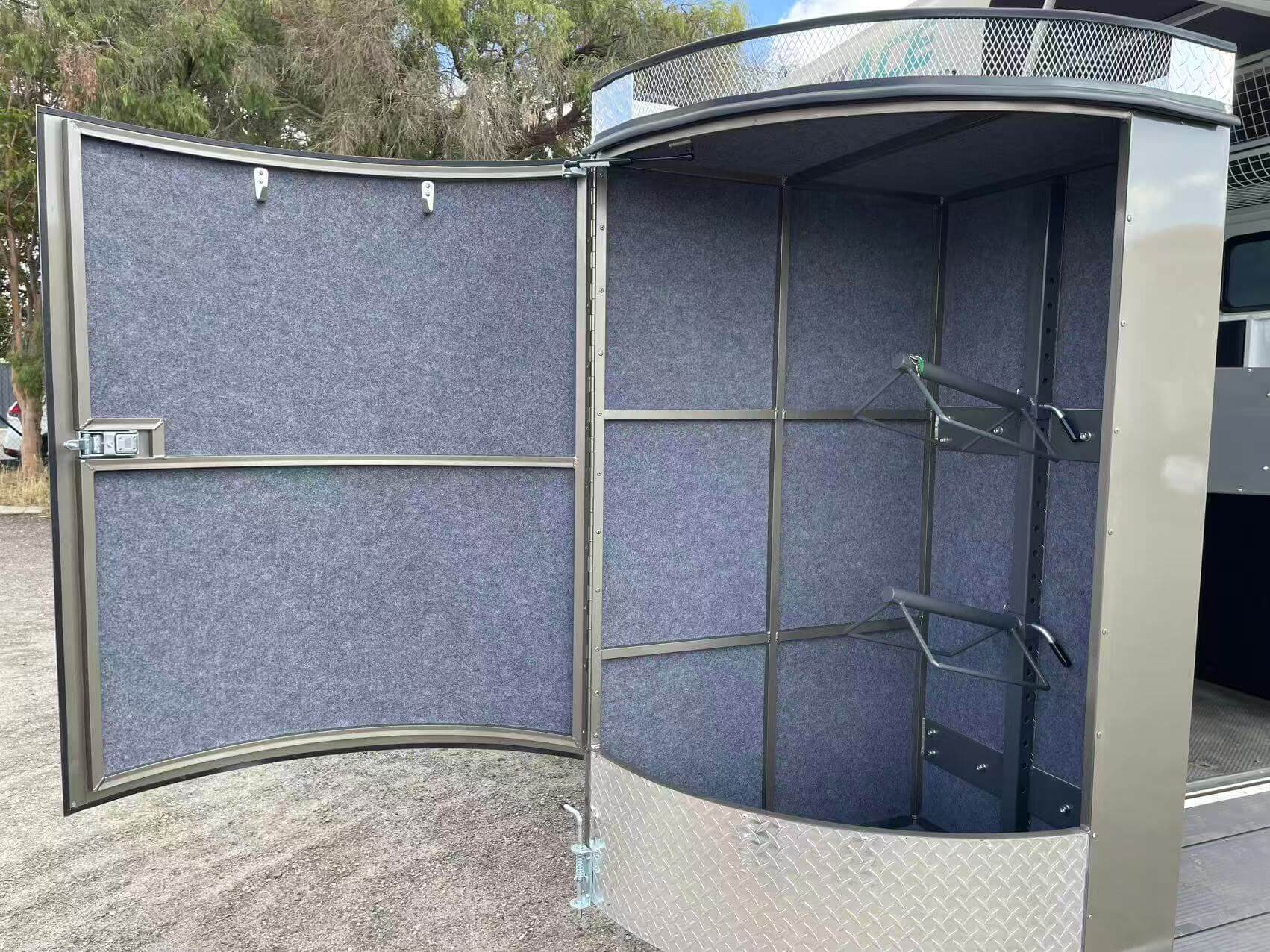

Painted swing out tack box with adjustable saddle racks and hooks

Partition wall with small personal door

Electric jack

4 outside LED lights on both side

USB and cigarette plug

Andersen plug

Sleep for 3

Main body
PPG Metallic paint
Galvanized RHS frame
Aluminium body panel for lighter weight
Aluminium flooring for horse area
Marine ply flooring for living area

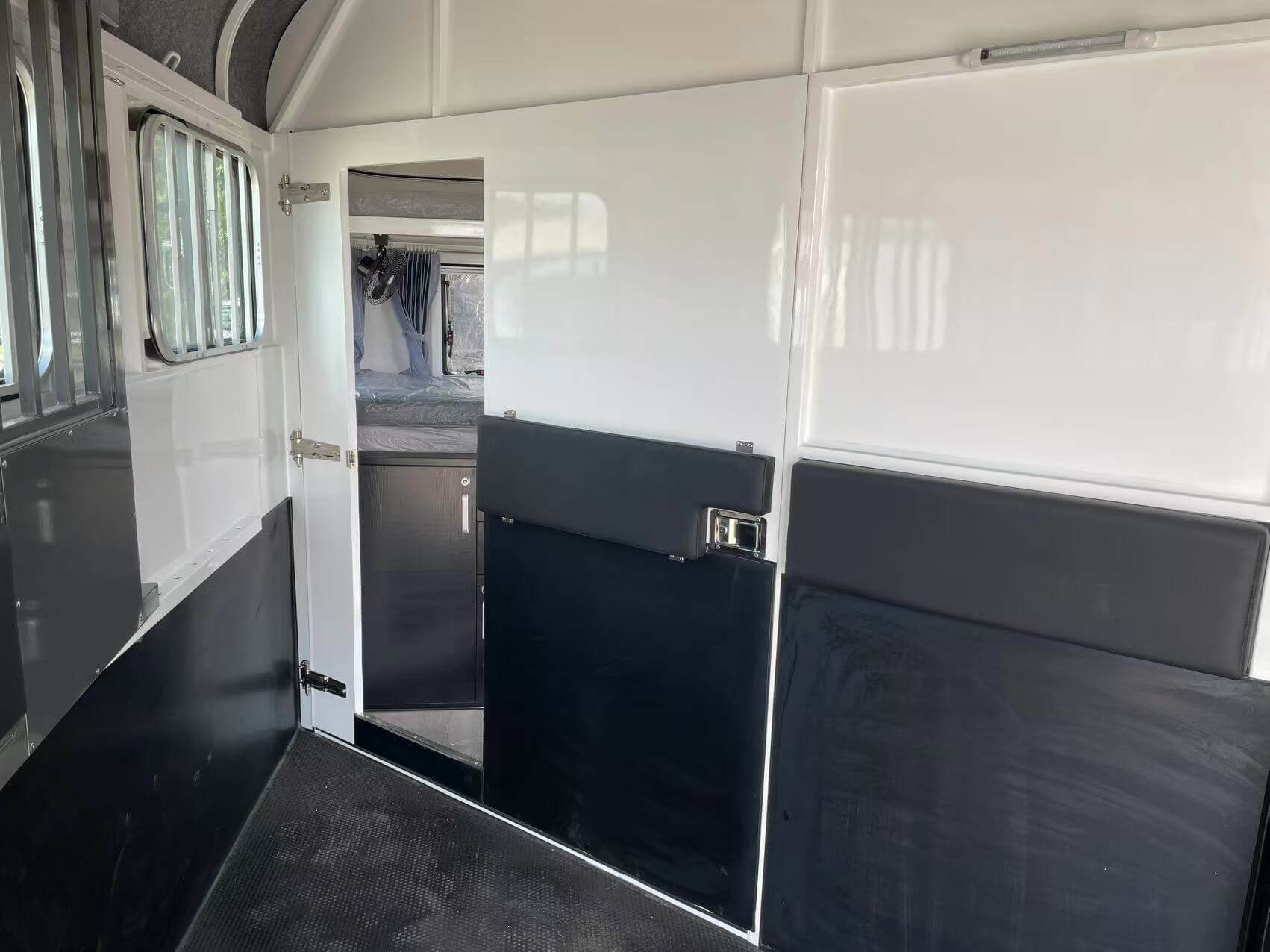

Partition wall gate with small door
Rubber matting for inner side panel
12mm Anti-slip Rubber matting for floor and tailgate
Rot proof fiberglass roof
Aluminium checker plate stone guards
Aluminium Alloy wheels
4 Outside and 2 inside tie up ring
Rear storm door Strut& High-intensity anti-rust strut

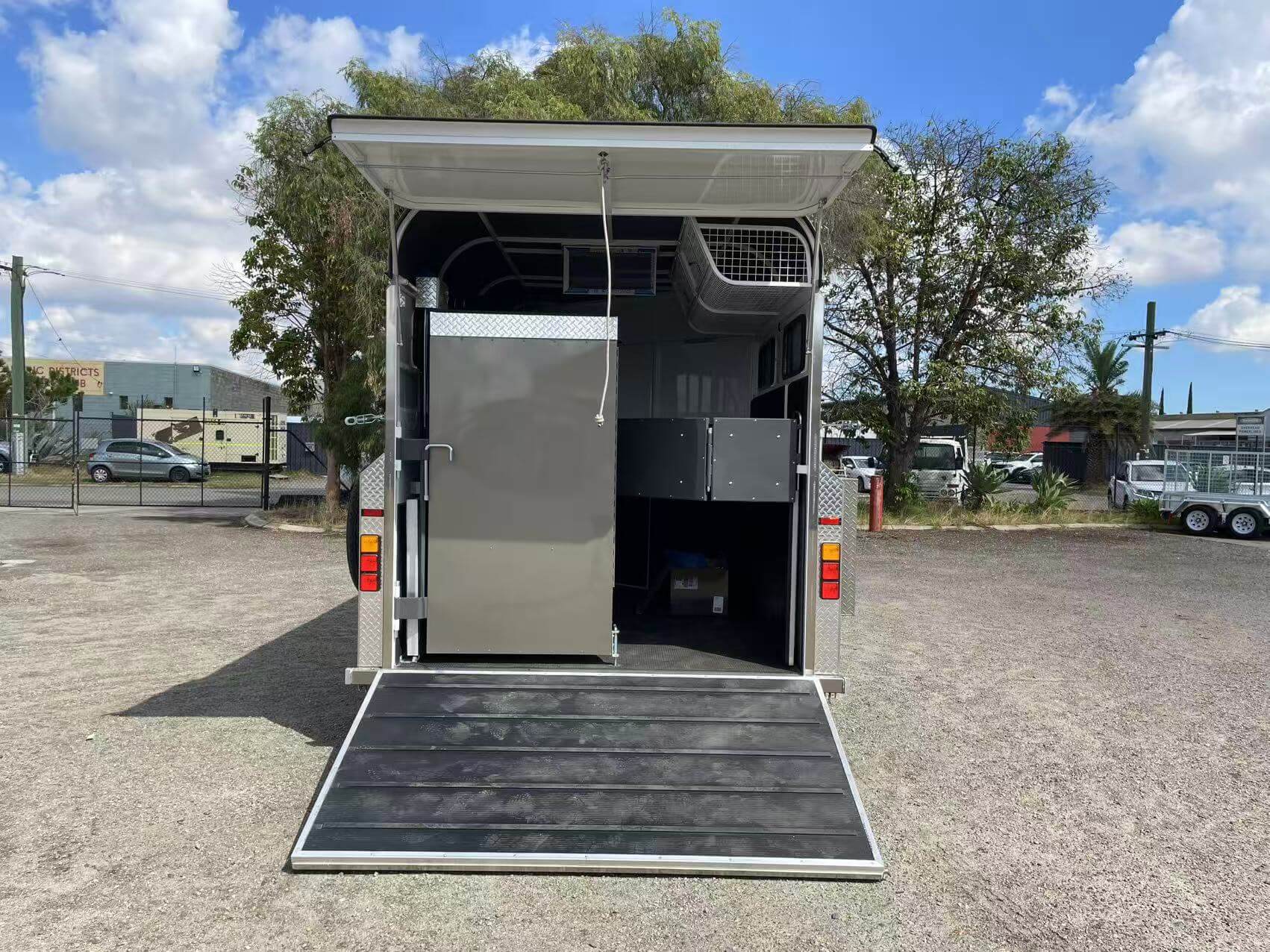

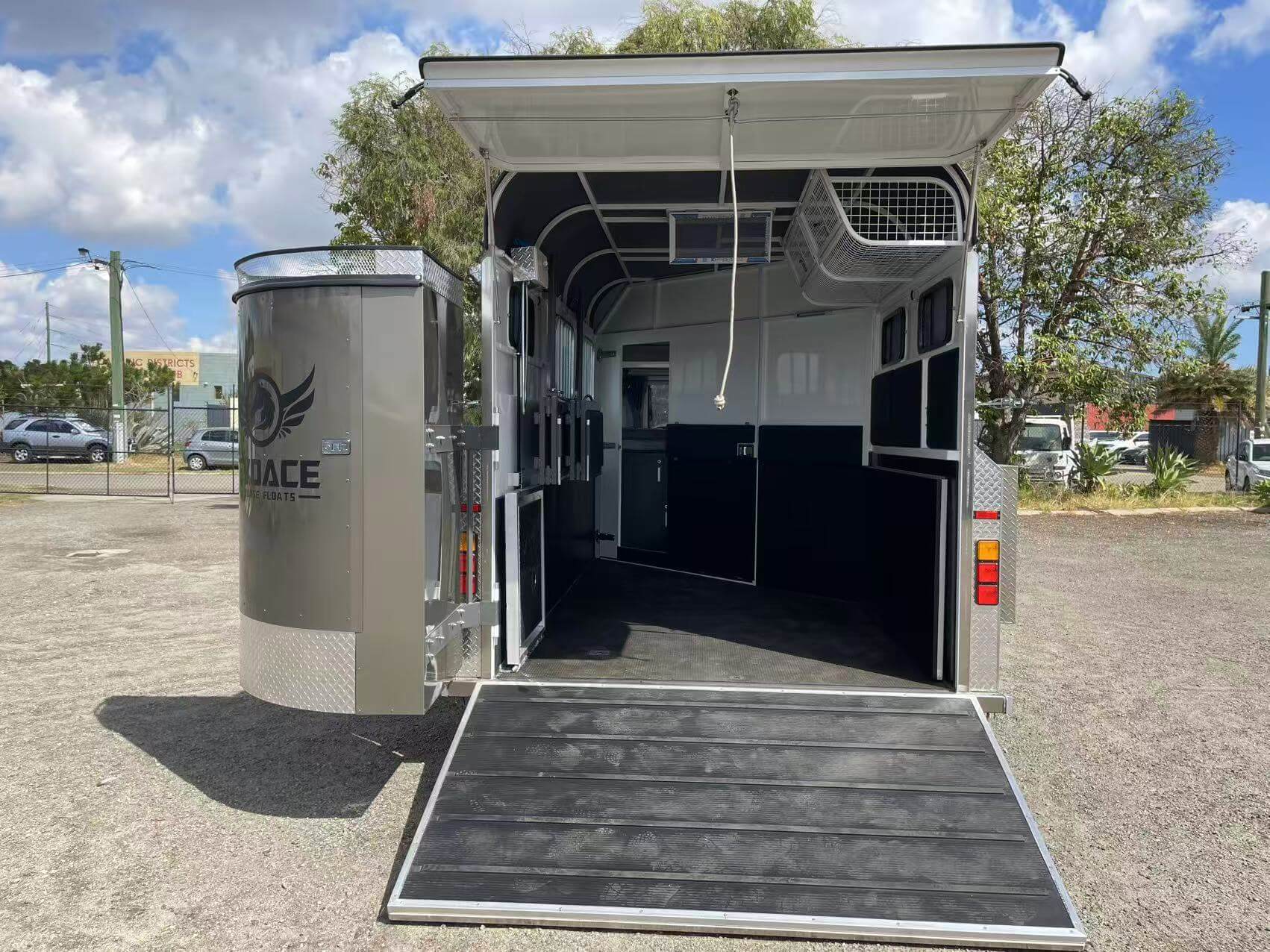

Tail gate Strut & High-intensity anti-rust strut
Roll rocker tandem spring 8 plate
2 Heavy duty trailer axles

Interior
Lined roof

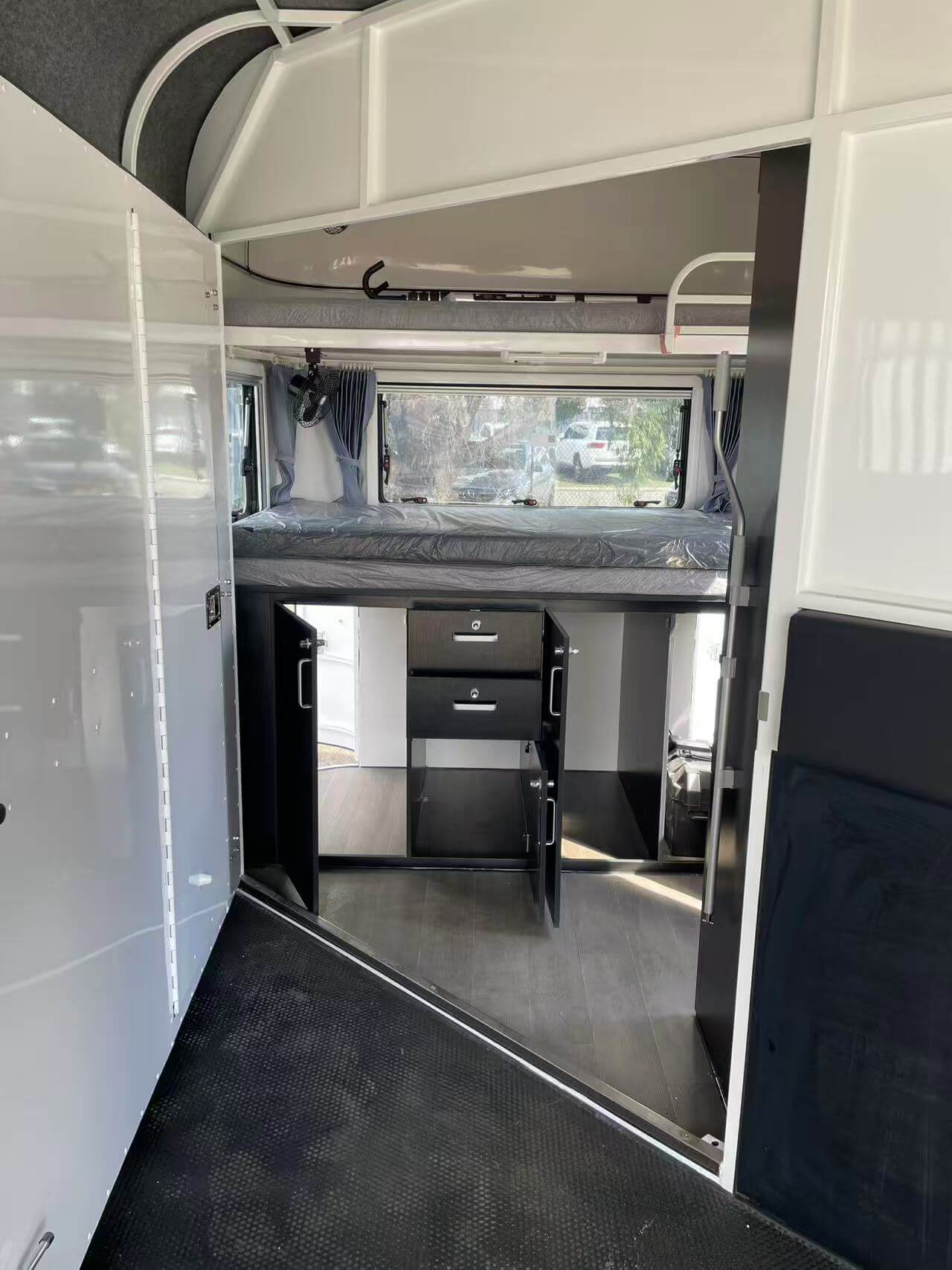

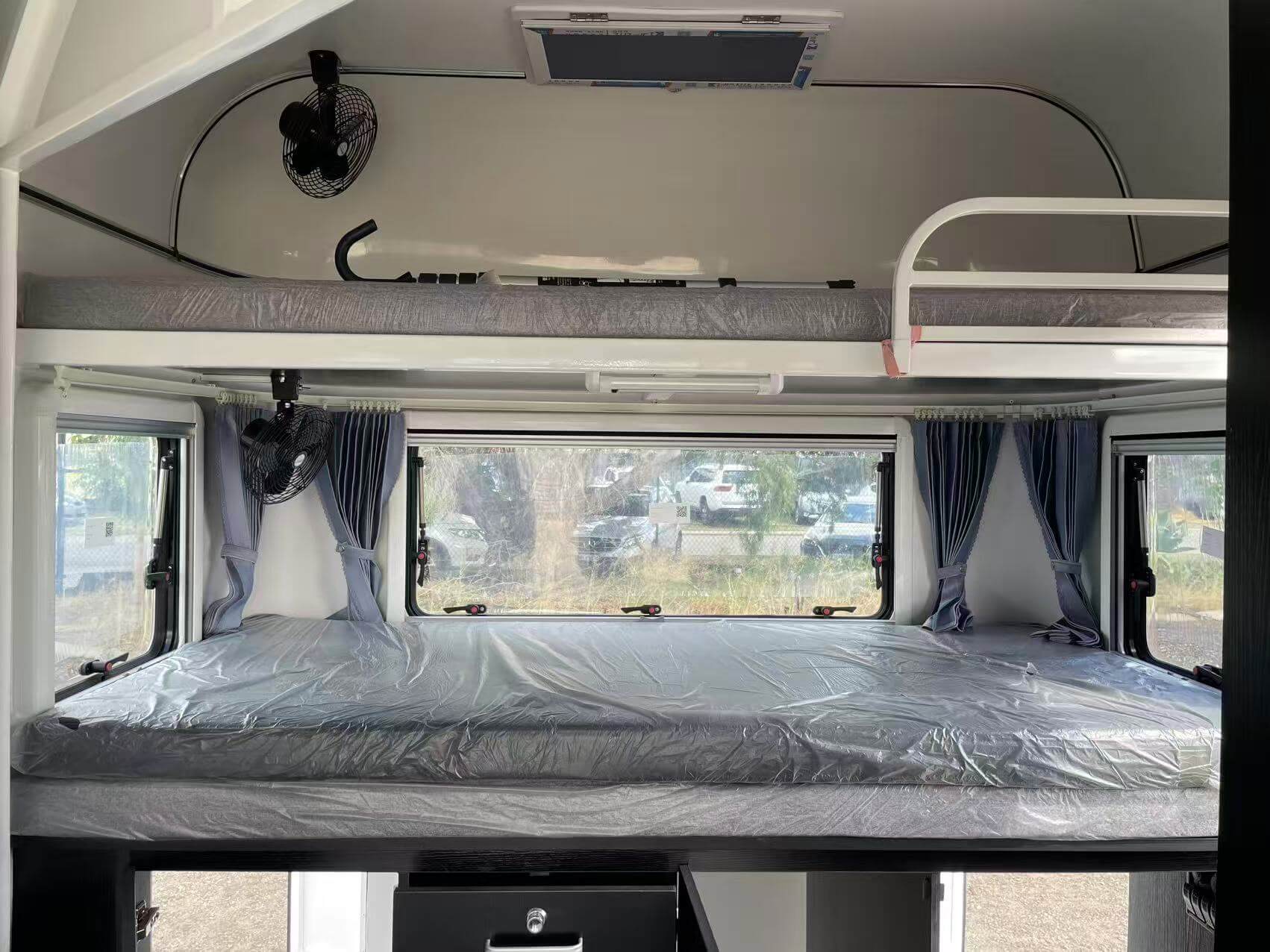

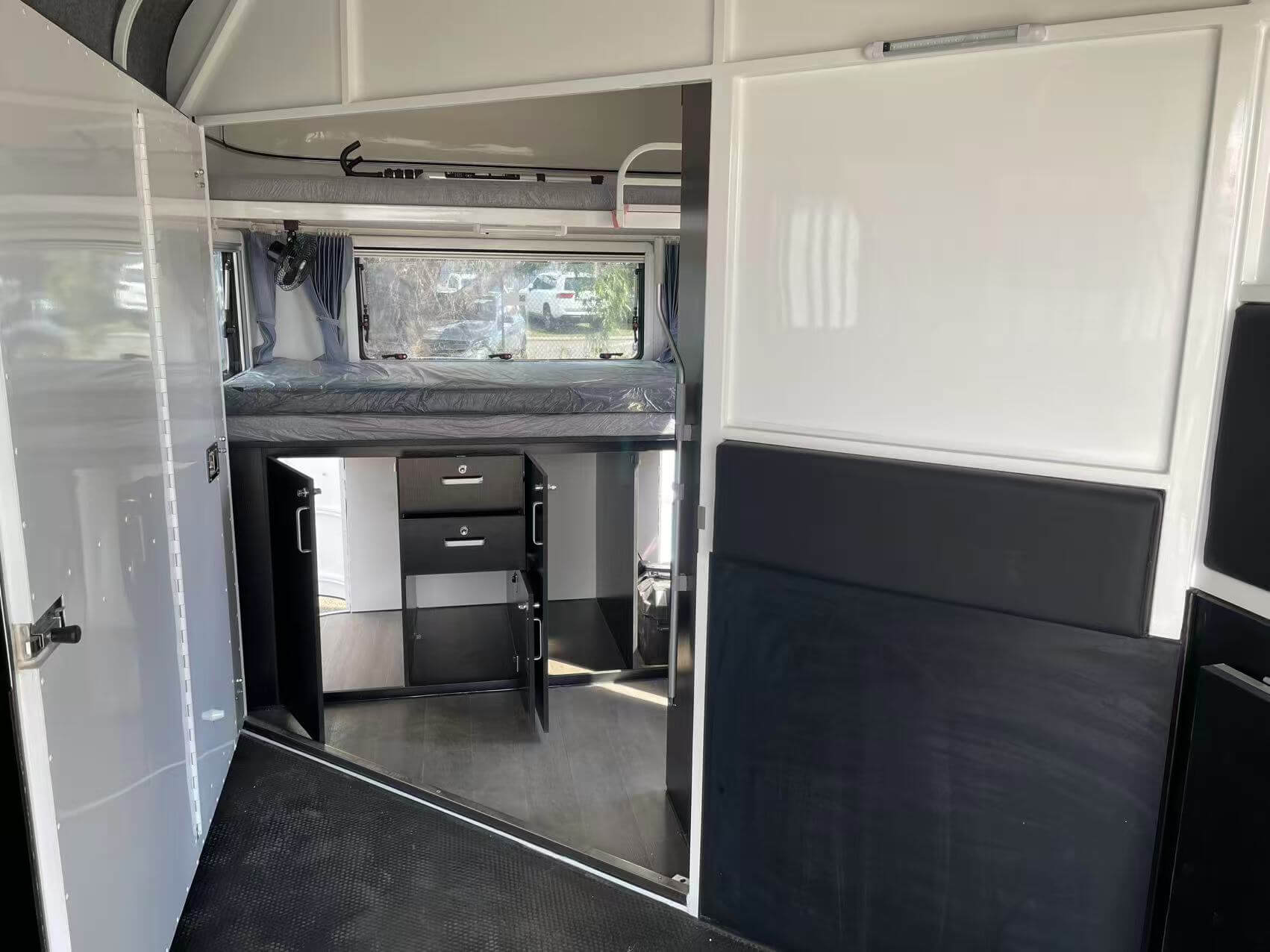

Front bunk beds with lifting table
Swingable head dividers

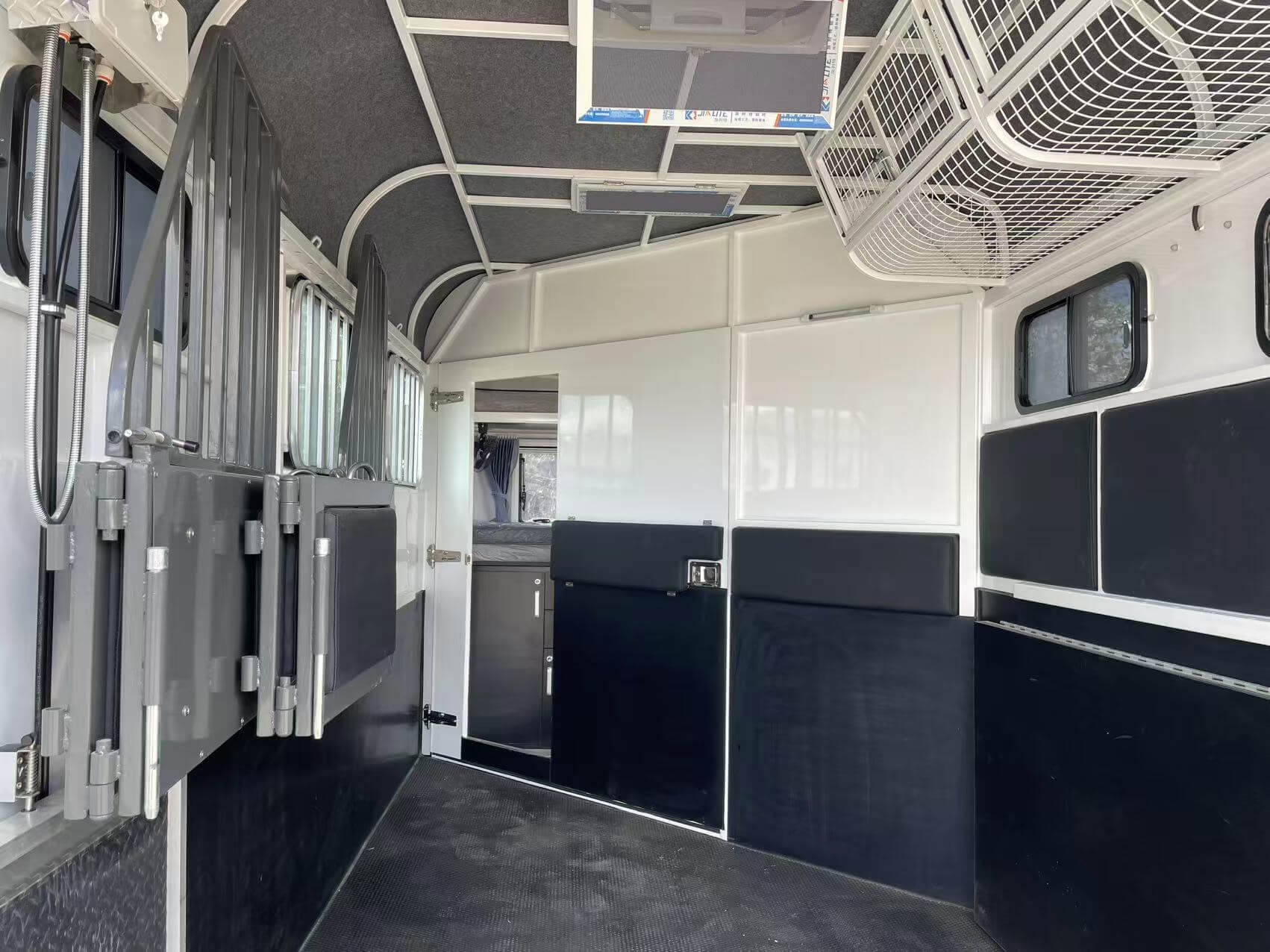

Fully padded adjustable and foldable guide rail horse divider

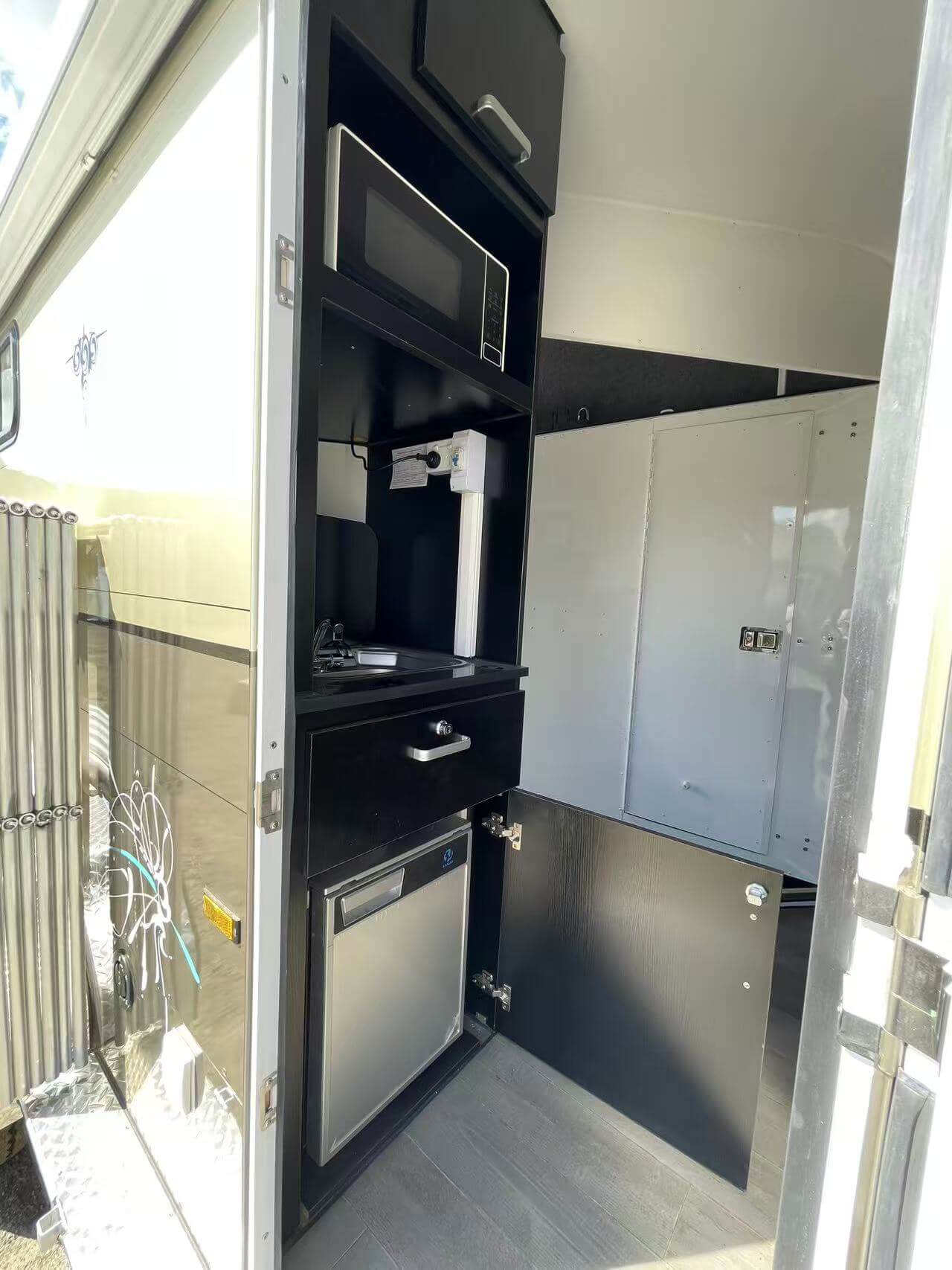

Kitchen cupboard and overhead storage
Foldable rear two horse dividers
Side rug rack
Small storage room in horse area

Windows
3 Caravn window at living area
3 large size upturning pop-up vents
2 Drop-down windows with fly screen
Side sliding windows

Electric and Brake system
Handbrake with breakaway safety unit
Safety towing system
Double axle electric brakes
4 Wheel electric brakes with safety break away system


Lights
6 LED Clearance lights
4 Living area lights
2 Internal horse area lights
2 rear turn and brake lights
1 License plate lamp
1 High mount stop lamp

Water system
95L underbody water tank
13L per minute electric water pump

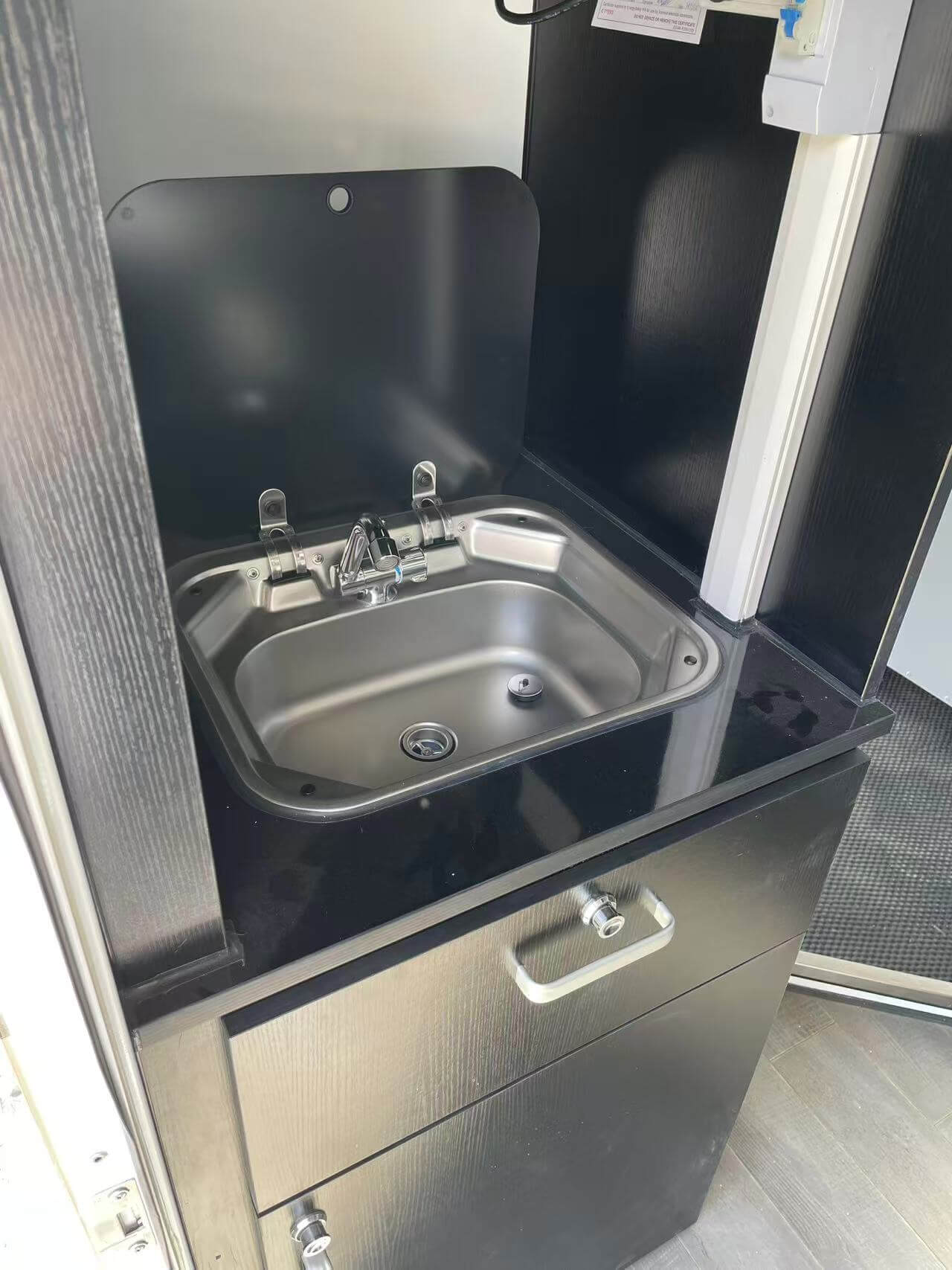

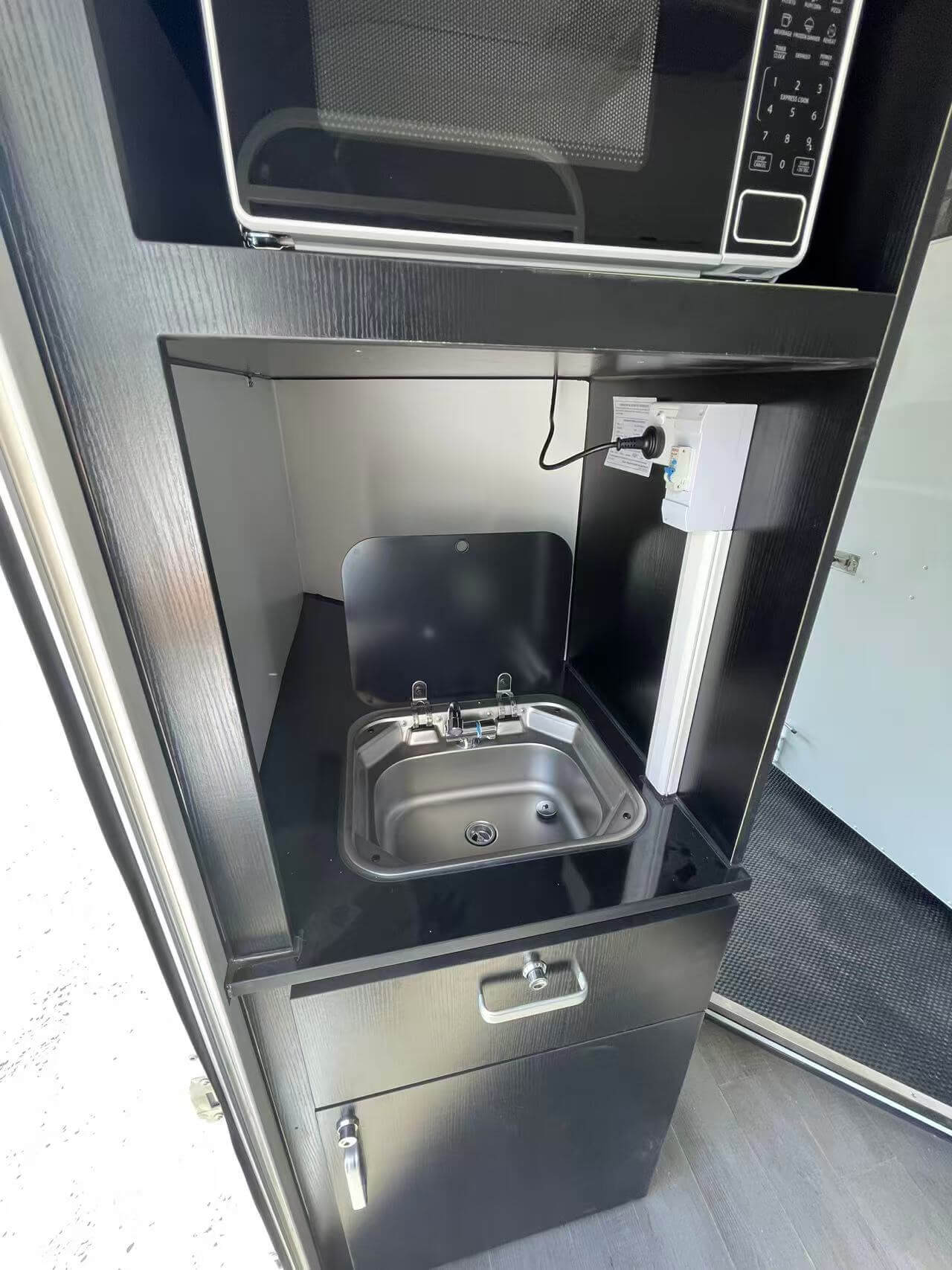

Water sink & Tap and Outside Tap on Drawbar

Extra Option

4 Solar panel 320w with MPPT solar controller: $2200
External power points: $200
Cowboy hot/cold shower and base (Gas shower) : $1600
Side and front tack boxes: $450
Spare tire lock: $80
Double panel aluminium yards – supply and install - $1400
Steel Yards – supply and install: $1200
Reverse camera system in horse bay area: $580
Reverse camera system with dual cameras: $880
Rear Swing & pin barn door: $400
Fold-down single side bed: $880
TV - installation includes TV Caravan mounting bracket premium quality aerial and cabling: $1280
Parallel Andersen lead with plug: $160

Note: The above information is for reference only, and the details shall be subject to the real object

EvoAce Horse Floats carry a 10 year structural warranty on the chassis, suspension and steel frame of your home floats. Modifications not carried nut or approved by EvoAce Engineering mill void this Warranty. All other items on our floats are covered by a 1-year Warranty asset out in the terms and conditions below.


TERMS AND CONDITIONS OF WARRANTY FOR EVOACE HORSE FLOATS:


1.  This warranty is effective from the initial date of sale providing that the horse float has only been used in the specific manner for which it is designed and all manufactures operation limits and guidelines have been observed. Any modifications not carried out by EvoAce or its Approved Contractors or agents may void this warranty unless previously agreed in writing and/or directly arranged by EvoAce.

2.  It is the responsibility of the float owner to read and follow the guidelines in the Float Maintenance sheet we supplied with your new float to ensure that our warranty conditions are being met.

3.  This warranty will be terminated in the event of commercial use of EvoAce Float including commercial hire, using the float for purposes other than the transport of a horse and rent, unauthorised modifications to the horse float, overloading, improper use of the horse float and failure to observe operation limits and guidelines.

4.  This warranty does not cover the following:  Tyres, bearings, rubber floor, padded dividers and any other items which are deemed to be normal wear and tear items.

5.  This warranty will be terminated in the event that the float owner fails to service and maintain the horse float on a regular basis and the claim is associated with and/or is the direct result of neglect.

6.  It may void the warranty in the event that the initial 1,500km / 6 month mandatory preventative service is not carried out by a qualified mechanic. A receipt must be kept to confirm such a service was performed.

7.  To help stop the rust forming, the steel used in a EvoAce Floats Chassis is hot dipped galvanised. However it does not prevent rust in certain situations such as : if chemicals, acids or salt water gets on the float then it should be washed off immediately. Also any scratches and stone chips that can penetrate the galvanising should be treated and painted immediately to help prevent rust forming.

8.  The 10 year frame and chassis warranty does not cover rust forming in the horse float and does not cover general wear and tear of the horse float. This includes horses chewing, scratching, pawing or kicking to the horse float and the use of any feed buckets and hay nets in or attached to the horse float.

9.  Should the float owner suspect that the float contains a structural defect/s, the float owner shall bring the horse float to EvoAce shop or to any approved repairers premises for inspection and repairs if needed for a full assessment at the float owner’s expense. EvoAce floats reserves the right to inspect all warranty claims

10.  EvoAce Floats shall not be liable for the costs of any repair or upgrade works arranged by the float owner that may constitute works under this warranty unless prior consent has been directly provided by EvoAce or an authorised agent of EvoAce. In the event that works or modifications are undertaken on the horse float by the float owner during the warranty period without the consent of EvoAce or its authorised agents, this may constitute the voiding of the warranty.

11.  This warranty supersedes all other expressed or implied warranties. No person is authorised to give or make changes to this warranty on behalf of EvoAce Floats. Nor are they to assume EvoAce Floats have any other liability in connection with any of its products unless made in writing and signed by the proprietor of EvoAce Horse Floats.
