OVERNIGHTER
 Home / Range / OVERNIGHTER

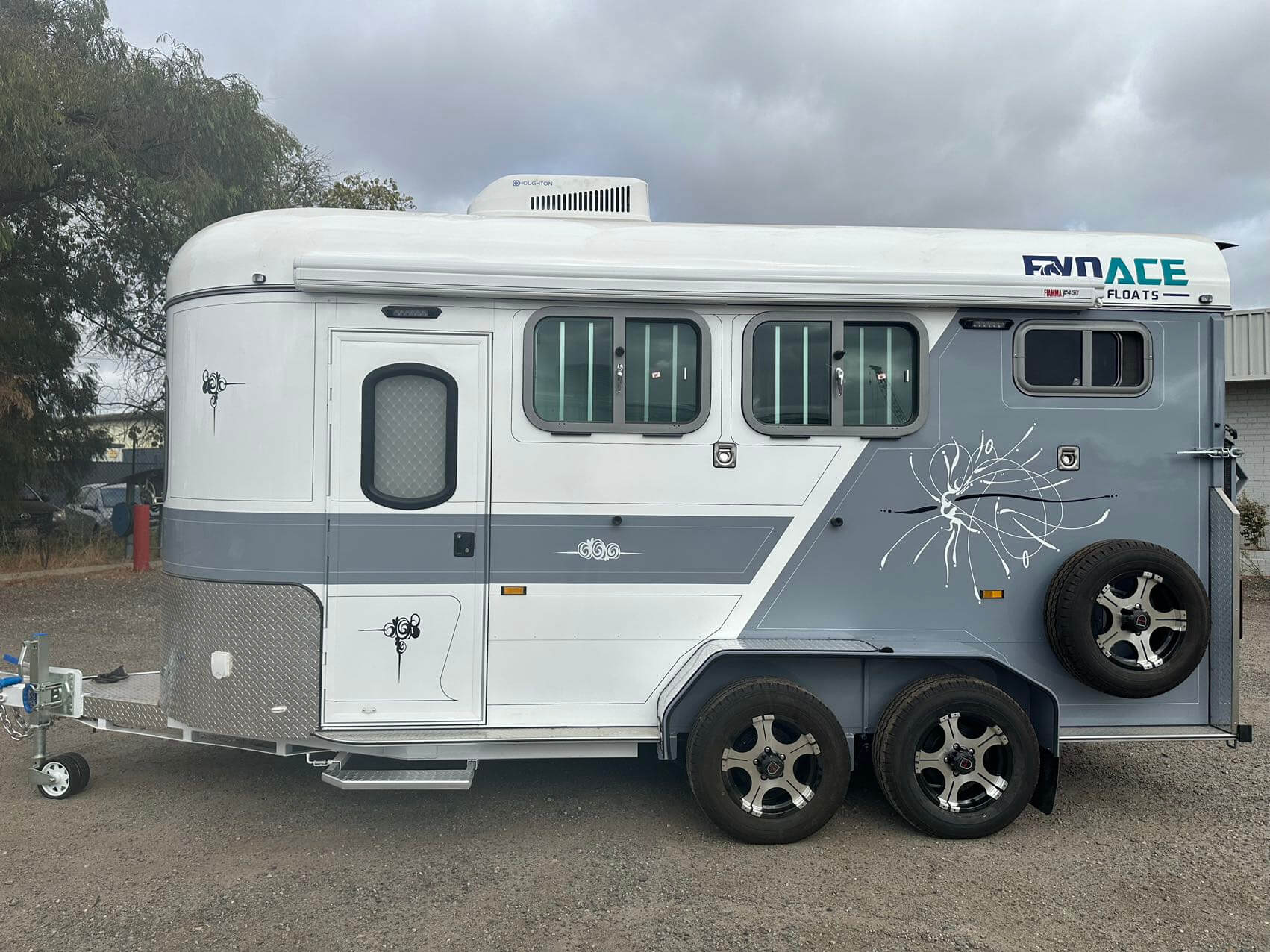

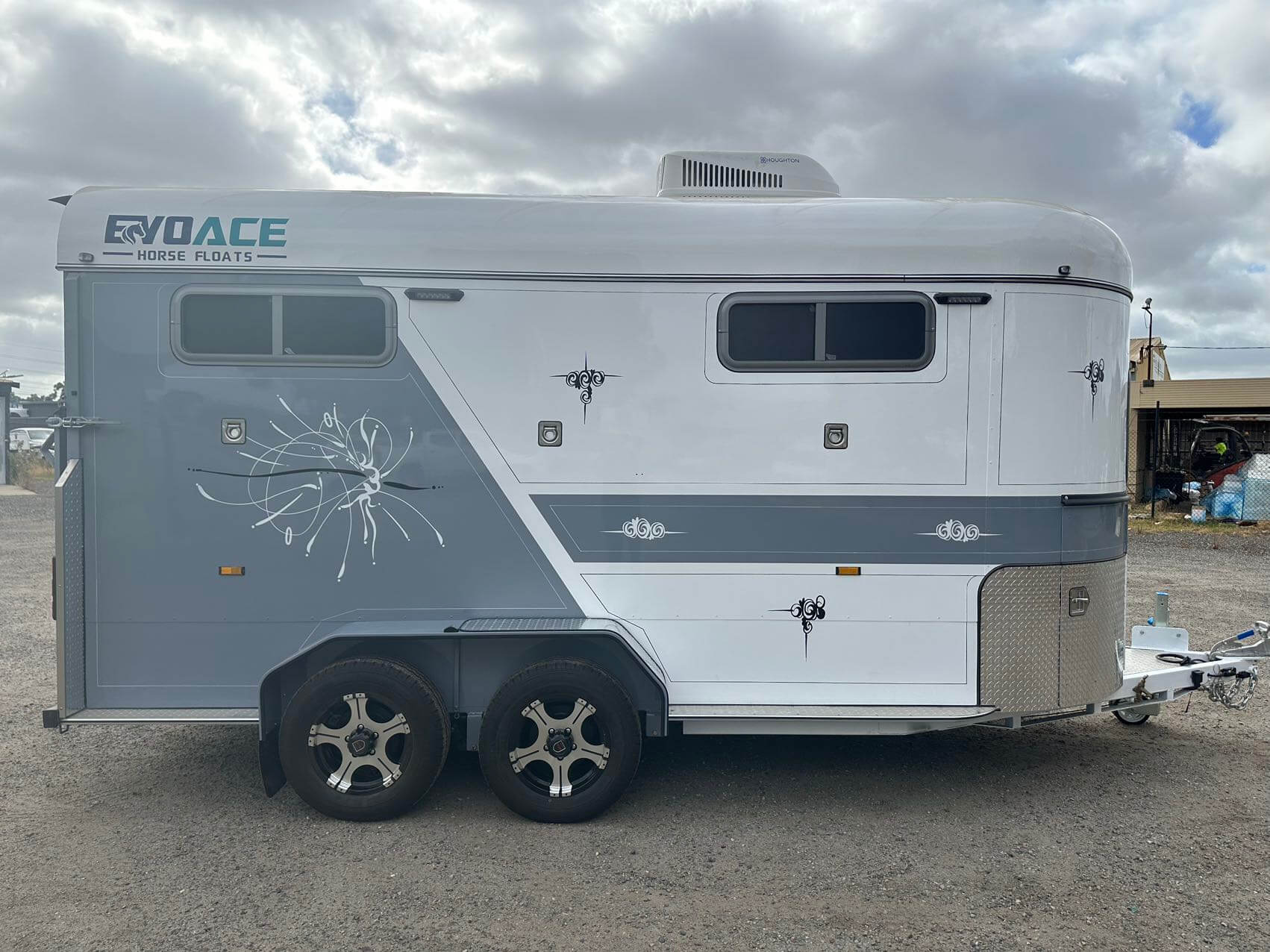

2 Horse Angle Load Overnighter with side bunk

2HAL OS-4900

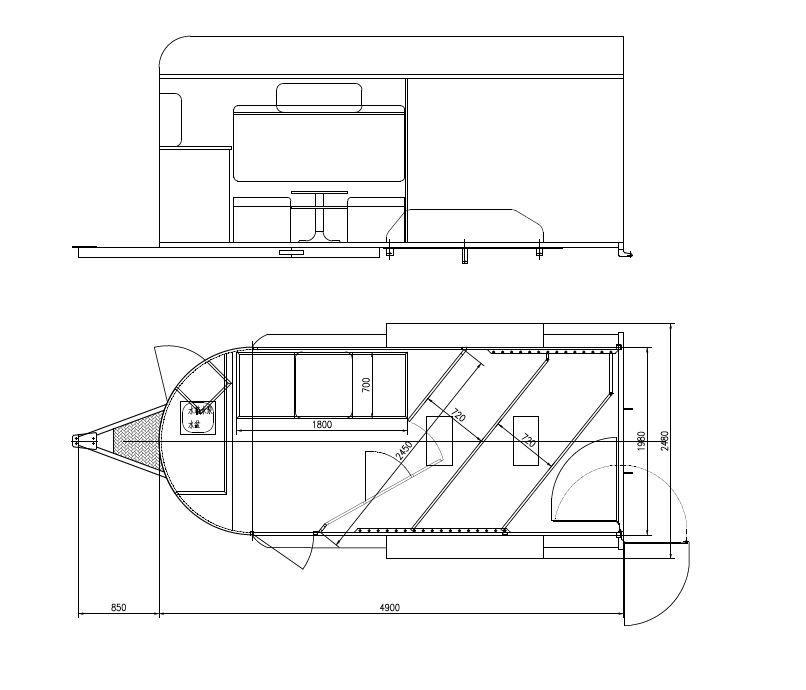

Layout


▼ READ MORE

Specifications

Key features:
Round head
PPG Metallic paint
TIMKEN BEARINGS

Side bunk: 1100x1900mm
Horse bay size: 720x2450mm
Side step
Fully adjustable guide rail horse divider
Aluminum flooring
85L 12/240v Fridge with freezer zone

110AH DC AGM battery and Victron Energy Blue smart charger

FRPs insulated living area

4 outside LED lights

Model: 2hal-overnight side bunk
2hal-OS 4900
Description: Round head
Dimension:
Overall dimensions: 5750*2500*2675mm
Body dimensions: 4900*1980*2280mm
Inner dimensions: 4850*1930*2230mm
Horse bay: 2450*720mm

Weight:
Tare: 2300kg
ATM: 3500kg


Main body
PPG Metallic paint
Galvanized RHS frame
Galvanized steel body panel
Aluminum flooring for horse area
Marine ply flooring for living area

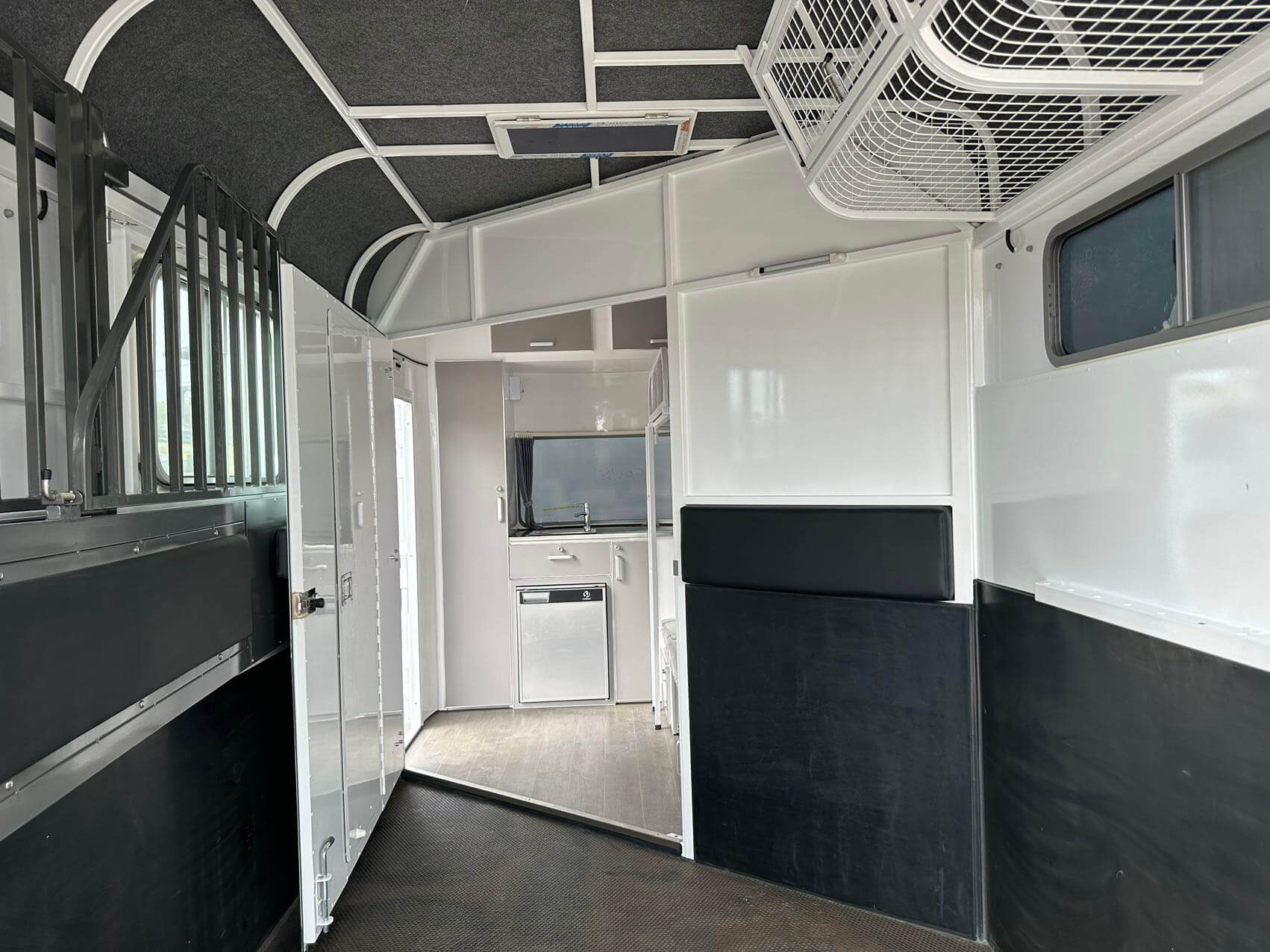

Partition wall gate with small door
Rubber matting for inner side panel
12mm Anti-slip Rubber matting for floor and tailgate
Rot proof fiberglass roof
Aluminum chequer plate stone guards
Aluminum Alloy wheels
4 Outside and 2 inside tie up ring
Rear storm door Strut& High-intensity anti-rust strut

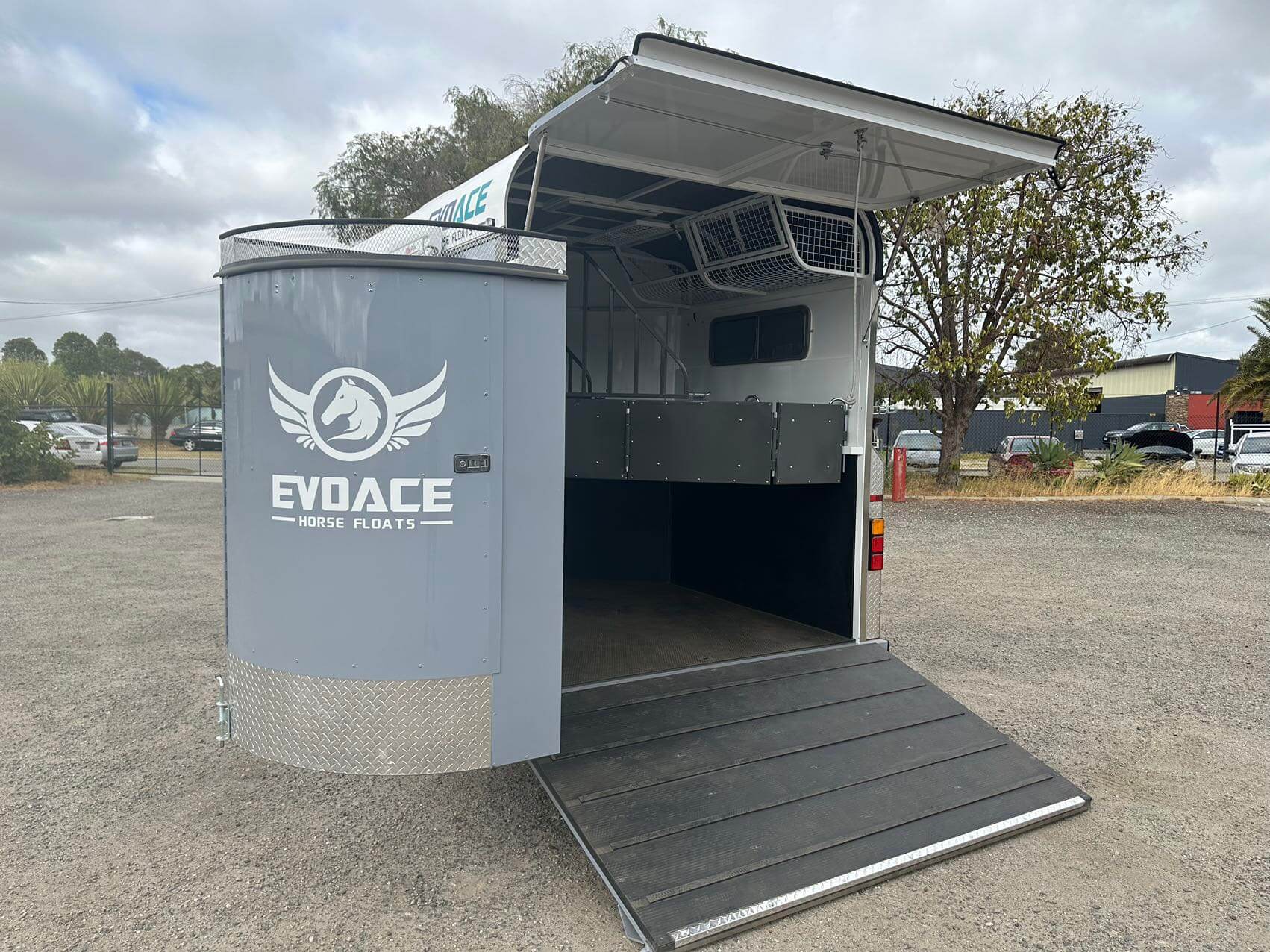

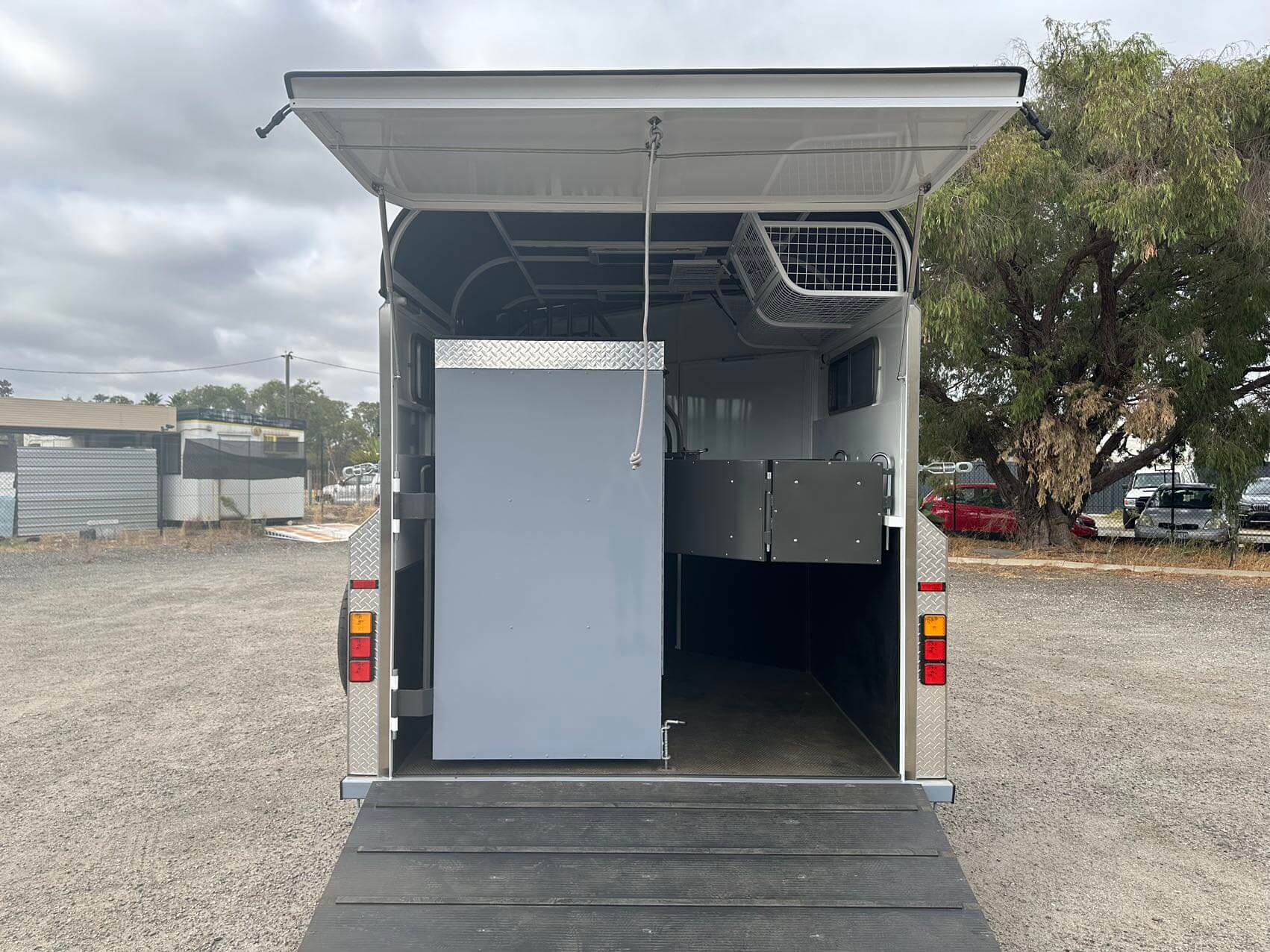

Tail gate Strut & High-intensity anti-rust strut
Roll rocker tandem spring 8 plate
2 Heavy duty trailer axles
Swing up jockey wheel

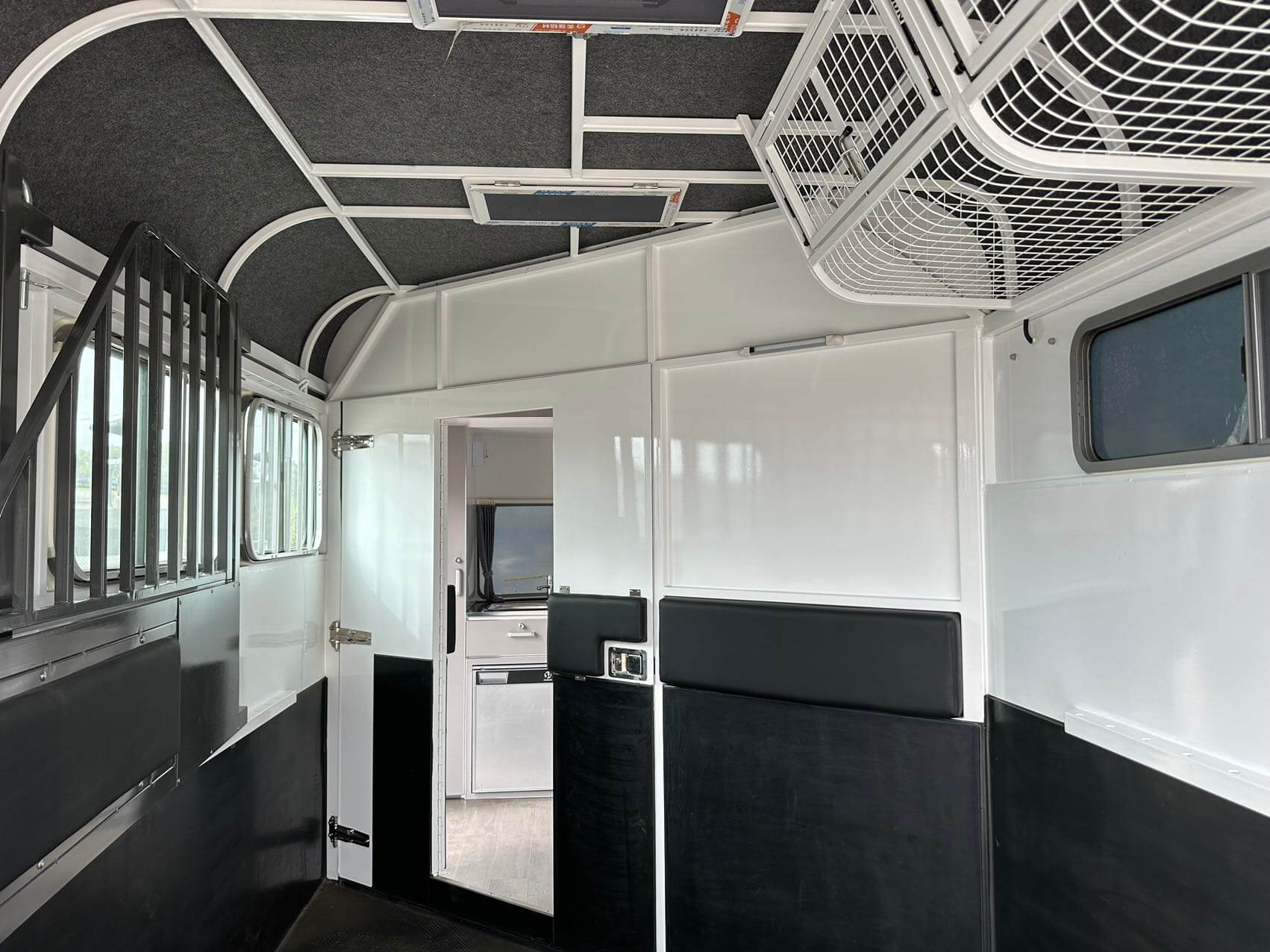

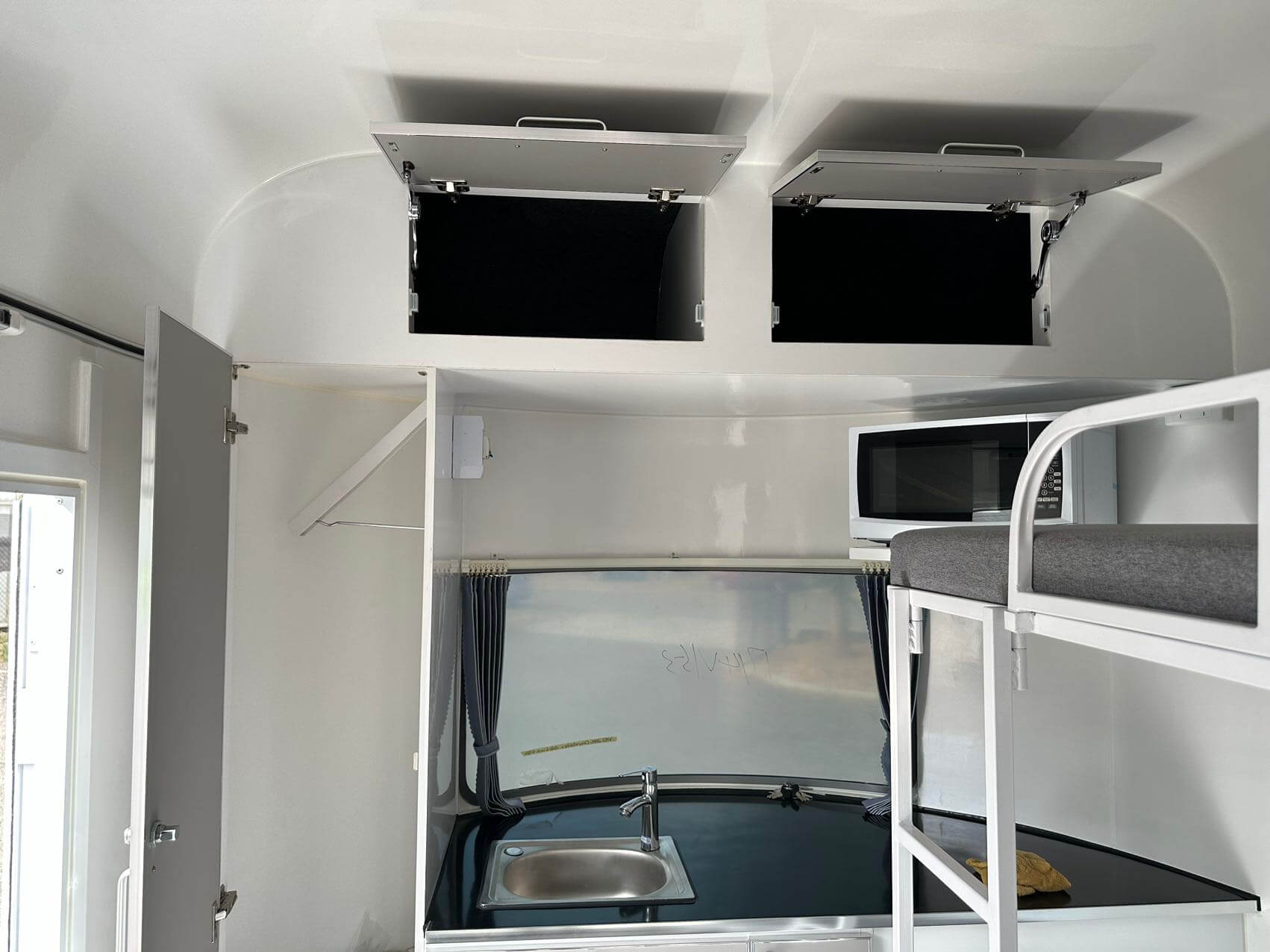

Interior
Lined roof

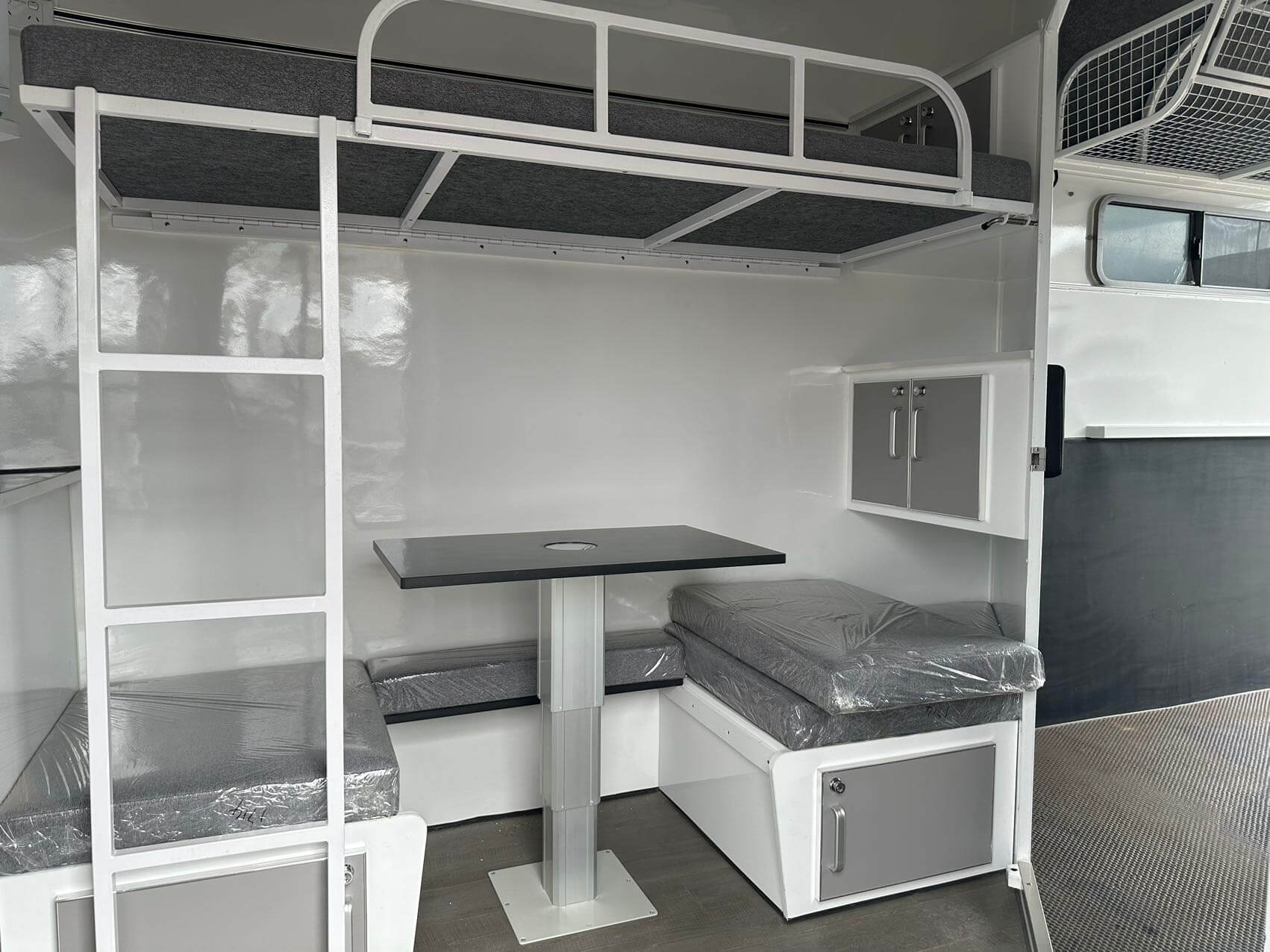

Front bunk beds with lifting table
Swingable head dividers
Fully padded adjustable and foldable guide rail horse divider

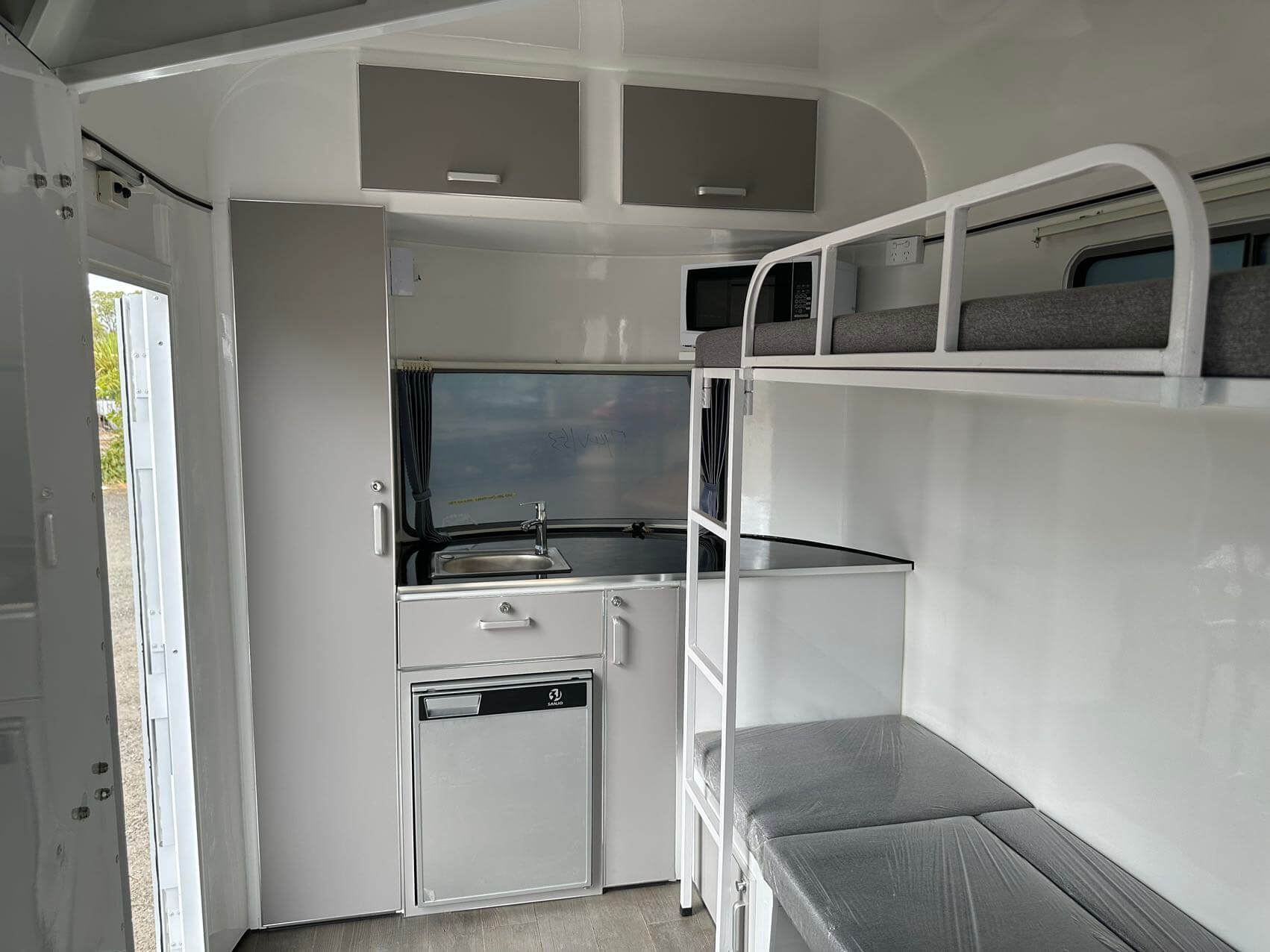

Kitchen cupboard and overhead storage
Foldable rear two horse dividers
Side rug rack
Small storage room in horse area

Windows

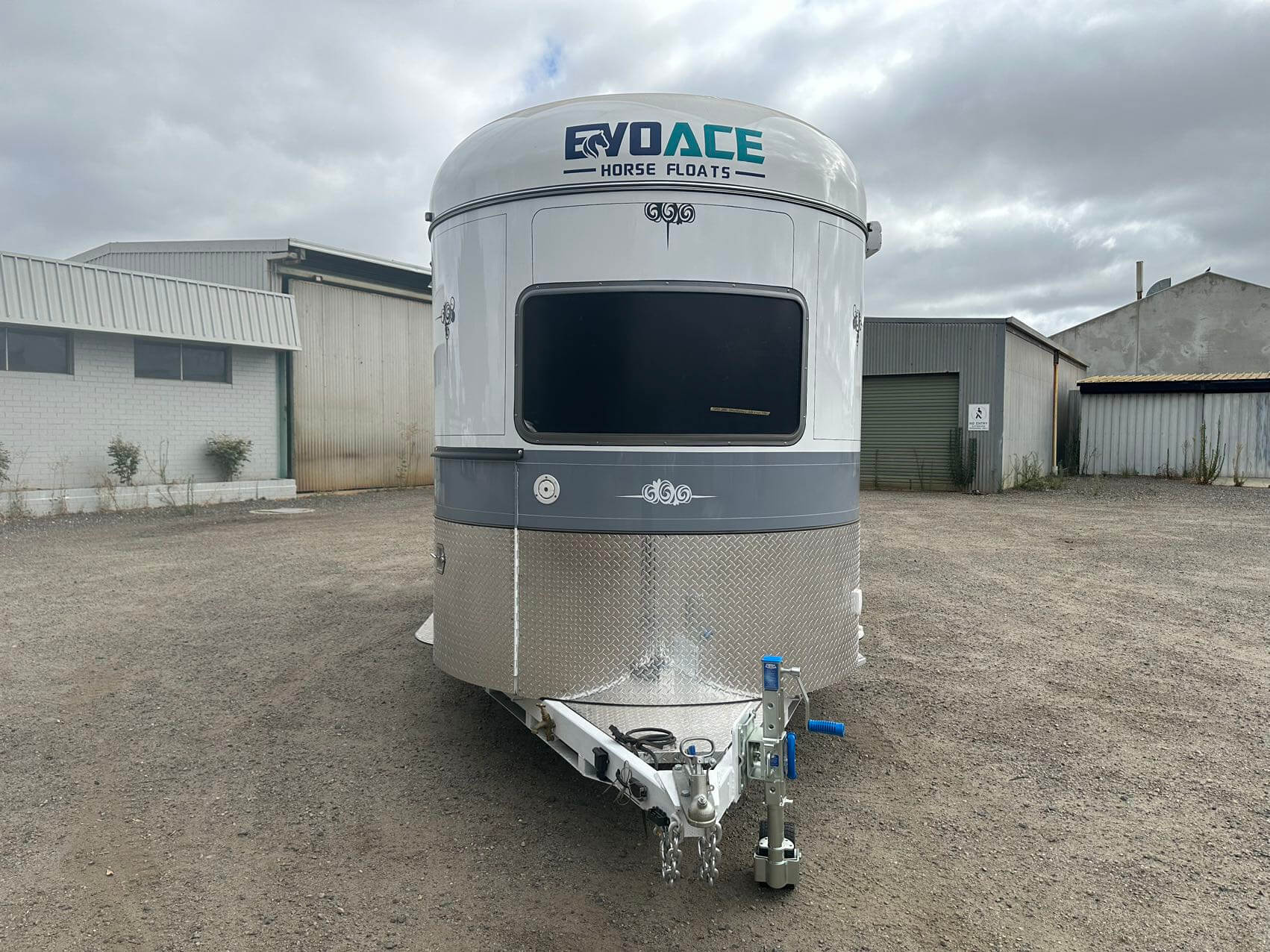

Front moulded window
2 large size upturning pop-up vents
2 Drop-down windows with fly screen
Side sliding windows

Electric and Brake system
Handbrake with breakaway safety unit
Safety towing system
Double axle electric brakes
4 Wheel electric brakes with safety break away system
240v Inlet and 2 sockets with safety switches

Lights
6 LED Clearance lights
4 Living area lights
2 Internal horse area lights
2 rear turn and brake lights
1 License plate lamp
1 High mount stop lamp

Water system
95L underbody water tank
13L per minute electric water pump
Water sink & Tap and Outside Tap on Drawbar

▼ READ MORE

Optional

Esseentials

Battery and charge: $1300
Caravan door with stainless steel mesh: $980
Fiamma Awning: $1800
85L 12v/240v Fridge: $950
Microwave: $160
Air conditioner: $2600

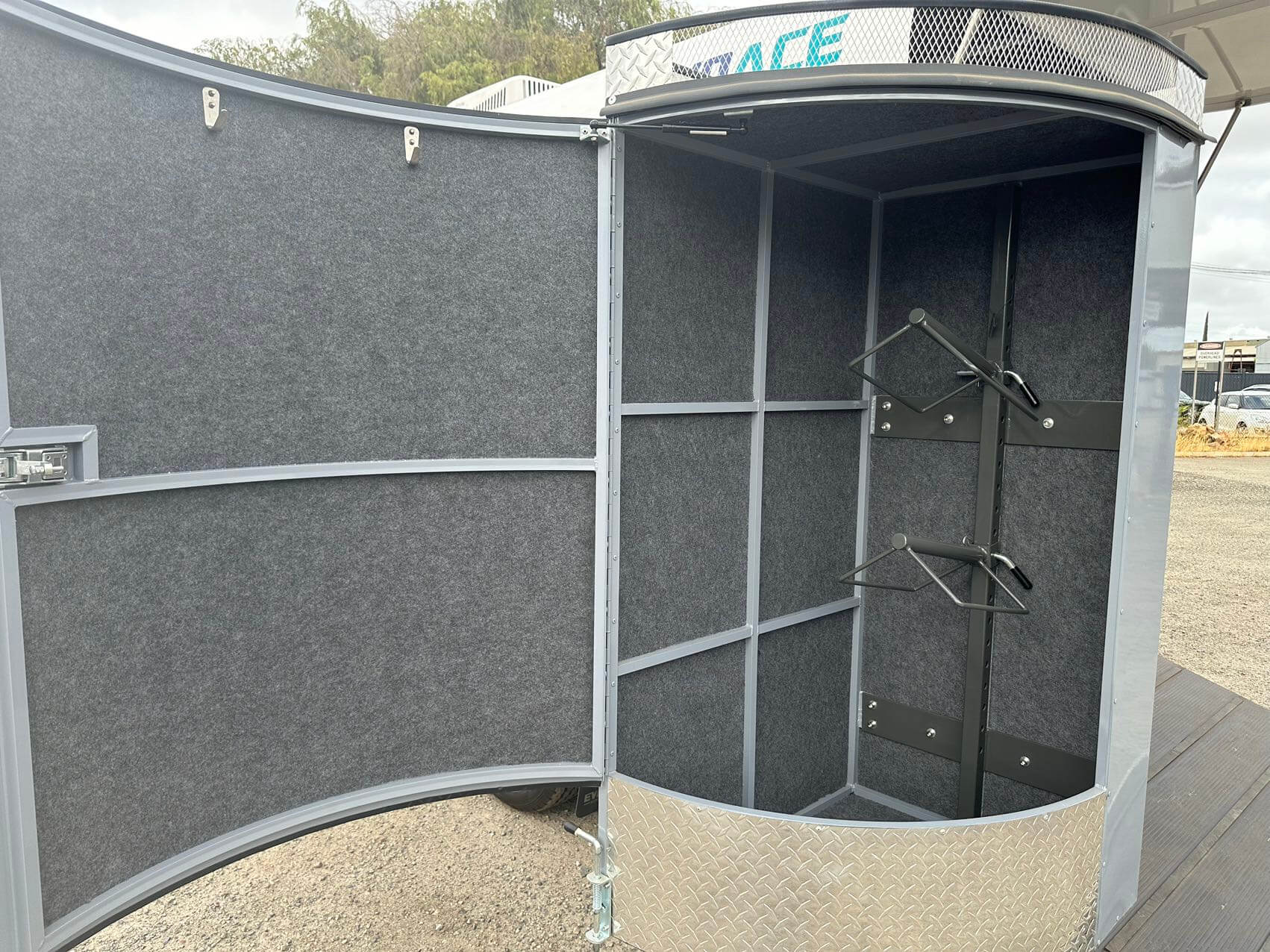

Aluminum painted swing out tack box with adjustable saddle racks and hooks: $1100
Caravan Side window (500*500mm): $210
Caravan Front window(1200*350mm): $350
Double panel aluminum yards – supply and install - $1400
Reverse camera system in horse bay area: $580
Reverse camera system with dual cameras: $880
Parallel Andersen lead with plug: $160

Luxurious

4 Solar panel 320w with MPPT solar controller-$2200
Gas shower with all fittings – supplied and installed in shower room: $2500

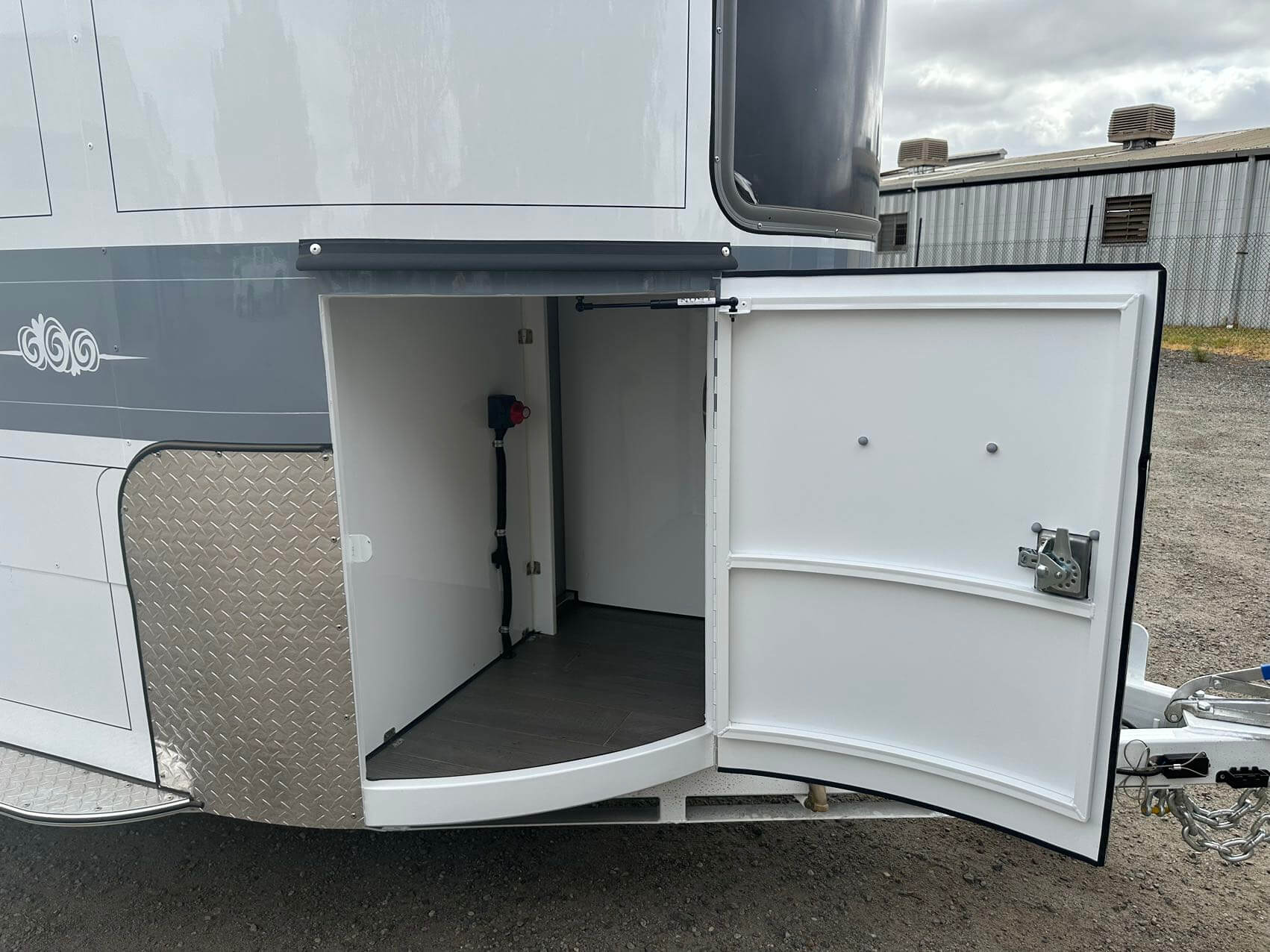

Side/front tack box: $450
Spare tire lock: $80
Steel Yards – supply and install: $1200
Rear Swing & pin barn door: $400
Fold-down single side bed: $880
TV - installation includes TV Caravan mounting bracket premium quality aerial and cabling: $1280


Note: The above information is for reference only, and the details shall be subject to the real object

▼ READ MORE

Colors

Delight your float in the way you want


PRODUCT DETAILS

PPG SPEEDHIDE® EXTERIOR LATEX IS A DURABLE, 100% ACRYLIC EXTERIOR PAINT DESIGNED FOR NEW AND REPAINT APPLICATIONS WHERE

DURABILITY AND EASE OF APPLICATION ARE MOST IMPORTANT IN BOTH THE COMMERCIAL AND MULTI-FAMILY MARKETS. THIS LESS THAN 50 G/L

VOC* PAINT PROVIDES EXCELLENT FLOW AND LEVELING, VERY GOOD HIDE AND COVERAGE AND HAS EXCELLENT RESISTANCE TO MILDEW ON THE

PAINT FILM. THIS 100% ACRYLIC WORKHORSE FORMULA ALSO PROVIDES EXCELLENT ADHESION AND CAN BE APPLIED AT TEMPERATURES AS LOW

AS 35°F (2ºC) EXTENDING YOUR PAINTING SEASON. SPEEDHIDE® EXTERIOR LATEX IS RECOMMENDED ON WOOD, MASONRY, FIBER CEMENT, BRICK,

ALUMINUM SIDING AND FERROUS METAL.

Pro opening paint can

▼ READ MORE
What Customers Are Saying

  • I purchased the 2hal standard float from the EvoAce team, and was lucky enough to time it perfectly where it was only a 3 week wait until it was mine! The communication and updates throughout the entire process was excellent.
    Even as a standard model there is still a range of adjustability for the bays, being able to widening them to an extent, or fully removable to open up the entire space completely.
    Mechanically, having electric breaks on all four wheels and 7 plate springs makes towing it a dream.
    Looking forward to start my float training process with the youngster so he has the best and safest experience possible. Thank you EvoAce!

    April Leunen

  • I have recently purchased a 2HAL EVOACE OVERNIGHTER float and could not be happier so far with the fantastic customer service provided. The team at Evoace were wonderful to deal with and have gone above and beyond to make sure I am 100% happy with my float.
    The functions on the float are a step above the rest, with fantastic use of space, plenty of storage areas and the ability to fully open the float up to create a spacious area for camping overnight with.
    The horse bays are fully adjustable and I can create a nice big bay for my large warmblood eventing horse.
    I am looking forward to taking my Evoace away camping once the season starts here in March

    Makayla Wood

  • We purchased a lovely 3HAL Camper recently and are very happy with our new float.
    The customer service was great very friendly and helpful.
    Thanks EvoAce!

    Kate Bradley

  • Float towed beautifully didn't even know it was behind us.

    Sue McGuinness

  • Hi Regine and Peter, Thank you so much for coming in today so that we could pick up our beautiful new float. We are over the moon with her. Thank you for all of your help with choosing the right float for our needs. I am so excited I am going to camp out in it down at the stables in our backyard. I will send you some photos. Please feel free to use this as a review for your business. I will also be spreading the word about your horse floats. Again a very big Thankyou to you both.

    Kylie Martin

  • Looked around and did my homework, EvoAce were my choice. The quality is top notch, service is outstanding. Love my 2HAL Overnighter. My dream float. Thank you EvoAce. Before you buy, check them out, you won't be disappointed.

    Emma Harper

  • We absolutely love our float and have driven over 3000ks
    >Helpful and friendly service at all stages.

    Avantage equine massage therapy

  • Anyone looking for a beautiful float or camper I highly recommend EvoAce floats.
    Yesterday I poped in with a friend who was lucky enough to purchase one of these floats and WOW!!!
    The customer service was absolutlely outstanding the floats looked amazing the quality and finish were great. We will be definitely going back for a gooseneck!

    Chelsea Coffeey
Customize Your Own Horse Float
Please answer the following questions to get the quotation

Products name

1. How many horse bays you need?

2     3     Other

2. Angle load or straight load?

Angle     Straight     Others

3. Square head or round head?

Square     Round

4.What horse bay size you want?

720*2450mm     800*2500mm     850*2600mm     900*2700mm     Others

5. Do you want a separate living area (with a wall between horse area and living area)?

Yes     No

6. What configuration would you like to add at the head of your horse float? (Multiple choices)

Front bunks     Side bunks (Living area only)     Singe bed     No bed     Lifting table     kitchen cupboard with sink
Kitchen cupboard without sink     Wardrobe     Shower room     Front storage     Others

7. What configuration would you like to add in horse area?

Swing up beds in horse bay
Swing down bed by the side wall
Cowboy shower
Rug rack
Swing out tack box (angle load only)
Others

8. What electrical equipment would you like to add?

Battery and charge     Microwave     240v Fridge     240/12v Fridge     Air conditioner     Solar panels     Camara
television     Water system     Others

9. What Outside equipment would you like to add?

Side tack box     Front tack box     Horse yard/fence     Awnings     Side tyre holder     Front tyre holder (Square head only)
Others

10. Please tell us if you have other ideas and suggestions.

Name *



Phone number *

Email address *

Verification code:*


Continue

Warranty

EvoAce Horse Floats carry a 10 year structural warranty on the chassis, suspension and steel frame of your home floats. Modifications not carried nut or approved by EvoAce Engineering mill void this Warranty. All other items on our floats are covered by a 1-year Warranty asset out in the terms and conditions below.


TERMS AND CONDITIONS OF WARRANTY FOR EVOACE HORSE FLOATS:


1.  This warranty is effective from the initial date of sale providing that the horse float has only been used in the specific manner for which it is designed and all manufactures operation limits and guidelines have been observed. Any modifications not carried out by EvoAce or its Approved Contractors or agents may void this warranty unless previously agreed in writing and/or directly arranged by EvoAce.

2.  It is the responsibility of the float owner to read and follow the guidelines in the Float Maintenance sheet we supplied with your new float to ensure that our warranty conditions are being met.

3.  This warranty will be terminated in the event of commercial use of EvoAce Float including commercial hire, using the float for purposes other than the transport of a horse and rent, unauthorised modifications to the horse float, overloading, improper use of the horse float and failure to observe operation limits and guidelines.

4.  This warranty does not cover the following:  Tyres, bearings, rubber floor, padded dividers and any other items which are deemed to be normal wear and tear items.

5.  This warranty will be terminated in the event that the float owner fails to service and maintain the horse float on a regular basis and the claim is associated with and/or is the direct result of neglect.

6.  It may void the warranty in the event that the initial 1,500km / 6 month mandatory preventative service is not carried out by a qualified mechanic. A receipt must be kept to confirm such a service was performed.

7.  To help stop the rust forming, the steel used in a EvoAce Floats Chassis is hot dipped galvanised. However it does not prevent rust in certain situations such as : if chemicals, acids or salt water gets on the float then it should be washed off immediately. Also any scratches and stone chips that can penetrate the galvanising should be treated and painted immediately to help prevent rust forming.

8.  The 10 year frame and chassis warranty does not cover rust forming in the horse float and does not cover general wear and tear of the horse float. This includes horses chewing, scratching, pawing or kicking to the horse float and the use of any feed buckets and hay nets in or attached to the horse float.

9.  Should the float owner suspect that the float contains a structural defect/s, the float owner shall bring the horse float to EvoAce shop or to any approved repairers premises for inspection and repairs if needed for a full assessment at the float owner’s expense. EvoAce floats reserves the right to inspect all warranty claims

10.  EvoAce Floats shall not be liable for the costs of any repair or upgrade works arranged by the float owner that may constitute works under this warranty unless prior consent has been directly provided by EvoAce or an authorised agent of EvoAce. In the event that works or modifications are undertaken on the horse float by the float owner during the warranty period without the consent of EvoAce or its authorised agents, this may constitute the voiding of the warranty.

11.  This warranty supersedes all other expressed or implied warranties. No person is authorised to give or make changes to this warranty on behalf of EvoAce Floats. Nor are they to assume EvoAce Floats have any other liability in connection with any of its products unless made in writing and signed by the proprietor of EvoAce Floats.
